Luckdoor 2D Barcode Scanner for Computers, USB Wired 1D 2D QR Code
Scanner, Automatic Handheld Bar Code Reader with USB Cable for
Retail Store, Library, Warehouse, Express, POS and Computer Plug
and Play
Product Description:
Luckydoor L500 upgraded Image CMOS scanning barcode reader can
interpret various 1D/2D barcodes. It can not only scan code on
paper, but also the electronic screen code. Supported Barcodes:
★2D: QR Code, Data Matrix, PDF-417. ★1D: Code 128, EAN-8, EAN-13,
UPC-A, UPC-E, ISBN, ISSN, Code 11, Code 39, Code 93, COde 32,
Interleave 2 of 5, Matrix 2 of 5, Industrial 2 of 5, IATA 2 of 5,
Codebar, MSI Plessey. TPU soft rubber wraps the bar code scanner
shell, which has excellent drop resistance. Rugged structure and
sealed design, withstands repeated 3-meters drops to concrete
floor. The handle is specially designed for North America customers
to get the most comfortable grip.
Product Features:
• Fast scanning speed. New decoding chip to read various 1D & 2D &
QR barcodes.
• Higher decoding accuracy, easy to interpret all kinds of
incomplete and fuzzy barcodes, reverse barcodes.
• This 2D barcode scanner is compatible with Windows, Android,
Linux system.
• Easy to use, USB interface does not need to be driven, plug and
play.
• Shock Resistant. Strong case to withstand 3m drop to concrete
floor.
Product advantage:
• Three Scanning Modes: Manual/ Continuous/ Automatic Induction
Scanning.
• Buzzer setting and LED prompt; adding prefix and suffix, CR, TAB,
CR&LF, multi-languages keyboard, etc.
• High-Performance CMOS Decoding Chip.
• This barcode scanner can withstand repeated 3 meters drops to
concrete floor.
Product Specifications:
| Performance Parameters |
| Light Sources | 617nm LED Aimer, White LED |
| Supported Symbologies | 1D: CODE128,EAN-13, ISBN,ISNN, EAN-8, UPC-A, UPC-E, Code 39, Code 39 Full ASCII, Codabar, Code 93, Interleaved 2 of 5, Industrial 2 of 5, IATA 2 of 5, Matrix 2 of 5, Code 11, MSI
Plessey, GS1 128, code32 2D: QR Code, Data Matrix, PDF417, Micro PDF417, Aztec Code, Micro QR, Direct Chinese |
| Scan Type | Image CMOS |
| Resolution | 640*480 |
| Scan Method | Manual/Continuous/Automatic scanning |
| Scan angle | Yaw 60°,Rotation 360°,Pitch 60° |
| Precision | ≥4mil |
| Depth of scan field | 30mm-230mm (EAN13 13mil 90%PCS) |
| Error Rate | Less than 1/5million |
| Interface | USB-HID, USB-COM, RS232 |
| Physical Parameters |
| Dimensions | 70.5mm*86.2mm*165.2mm |
| Weight | 100g |
| Material | ABS+PC |
| Cable Length | 2m |
| Environmental Parameters |
| Operating Temperature | -20℃ ~ 50℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Relative Humidity | 5%~95% RH(Non-condensing) |
| Ambient lighting | 0~100000LUX |
| Drop/Shock Resistance | Withstands multiple times 1.5 meters drops to concrete |
| Electrical Parameters |
| Working Voltage | DC5V±5% |
| Operating Current | 120mA |

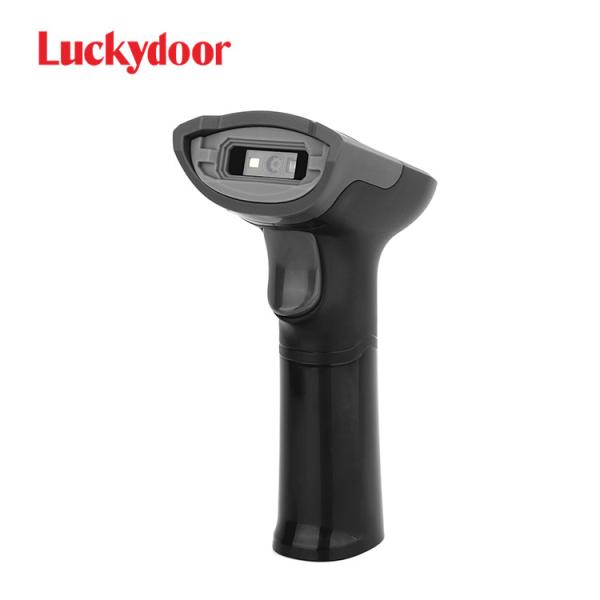

Product Pictures:
FAQ:
1. Will this read an ecc200 2d dmc with a rectangular format?
Yes, this 2D Barcode Scanner can read an ecc200 2d dmc with a
rectangular format.
2. Will this scanner work on amazon fire tablet?
This USB wired 1D/2D barcode scanner is connected to laptops, PC,
POS machines via USB cable, does NOT work on mobile phones and
tablets.
