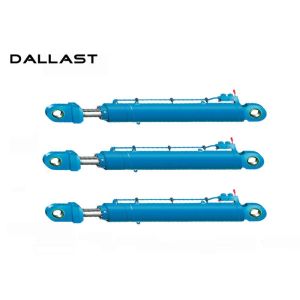

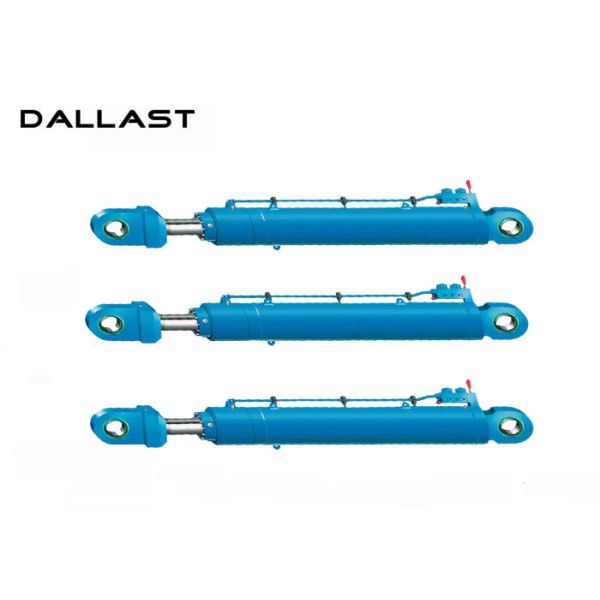

High Pressure Bulldozer Piston Double Acting Industrial Hydraulic
Cylinder
The double acting hydraulic cylinder block models a device that
converts hydraulic energy into mechanical energy in the form of
translational motion, hydraulic fluid pumped under pressure into
one of the two cylinder chambers forces the piston to move and
exert force on the cylinder rod. double acting cylinders transfer
force and motion in both directions.
Application:

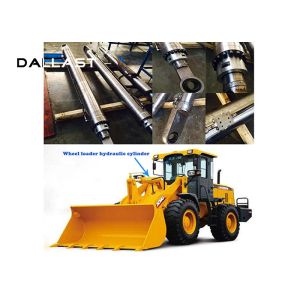

DALLAST series Hydraulic Cylinder widely used in military industry,
petroleum, aerospace and machining shops, Construction field, ships
building industry, petroleum & chemical industries, defend and
electricity industries, food processing and medical industry,
boiler heat exchanger, machinery and hardware fields ,etc.
Double-acting applications
Standard color: Black;
All Seals: Manufactured to EU specification;
Ports: SAE(NPTF port or other can be available);
100% hydro-pressure test;
Rod surface treatment: Superior quality chrome plated;
Standard: B type piston(optional: A type piston);
Apply LOCTITE to rod end thread.
| Bore | Rod | Port | A | LP | LW | LN | HP | EP |
| 2'' | 1 1/4'' | 3/8''NPT | 10.25'' | 2.125'' | 1.125'' | 2.07'' | 1.89'' | 1'' |
| 2.5'' | 1 1/2'' | 1/2''NPT | 10.25'' | 2.125'' | 1.125'' | 2.07'' | 1.89'' | 1'' |
| 3'' | 1 1/2'' | 1/2''NPT | 10.25'' | 2.125'' | 1.125'' | 2.07'' | 1.89'' | 1'' |
| 3.5'' | 1 3/4'' | 1/2''NPT | 10.25'' | 2.125'' | 1.125'' | 2.07'' | 1.89'' | 1.125'' |
| 4'' | 2'' | 1/2''NPT | 10.25'' | 2'' | 1.125'' | 2.07'' | 1.89'' | 1.125'' |
| 5'' | 2 1/2'' | 1/2''NPT | 10.25'' | 2'' | 1.5'' | 2.44'' | 2.5'' | 1.5'' |
FAQ
1. Q: How to place order?
A: Please kindly advise your excavator model or send us your
drawings so that we can confirm the size and details with you.
2. Q: How long have you been in hydraulic cylinder business?
A: Our factory has been in hydraulic cylinder business for more
than 14 years, we have experience in the production of hydraulic
cylinder.
3. Q: Have you been exported to oversea?
A: Our hydraulic cylinder has been exported to Japan, America and
many other countries.
4. Q: Do you offer after-sale service?
A: Yes, we will offer 3 months of warranty time will offer to our
customer dating from the receipt day.
