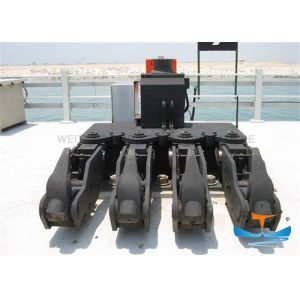

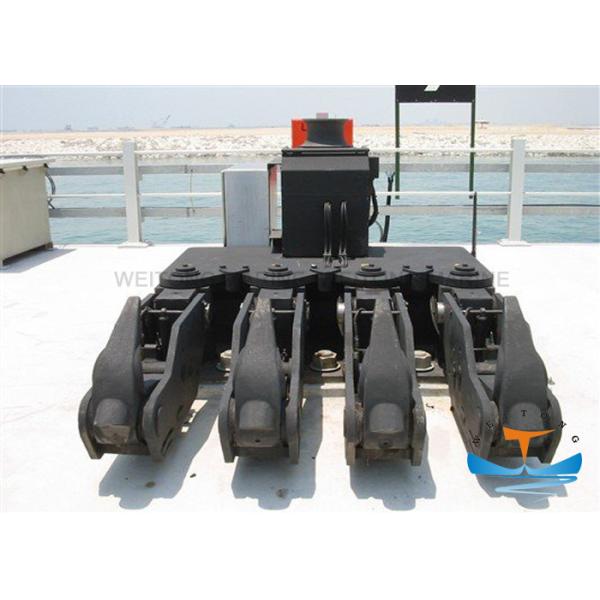

Marine Harbour Towing Quardruple Quick Release Mooring Four Hooks

Marine Harbour Towing Quardruple Quick Release Mooring Four Hooks

Description

Quick release mooring hooks is widely used due to its safety, reliability, feature of laborsaving and shortcut, etc, composed by stranded cable structure and release mooring structure.
Our Quick Release Mooring Hook has the advantages of reasonable structure, reliable quality and safe use.We provide four types of quick release mooring hooks: single hook, double hook, triple hook, quadruple-hook; the double hook and triple hook are the most widely-ranging used.

Main Technical Performance
1.Hook’s motion range: lateral horizontal movement within the range of 90 degrees , 45 degrees vertical elevation
2.Handle Operation Force <150N
3.The fore-end of anchor hook is equipped with elastic cushion, which prevent the collision between the hook and frame
4.Motor: three phase380V 50HZ or 400V 60HZ,Optional explosion-proof or non-explosion proof.
5.Brake: short circuit protection, over load protection
6.Optional Level of Protection: IP55,IP56,IP65,IP66
7.Manual release, pneumatic or hydraulic release

Specification

1.Number of Hooks: 4 hooks
2.Safe Working Load: 400kN to 1500kN
3.Capacity Mounting Base: 1600kN to 6000kN
4.Weight exclude Capstan: 938kg to 4698kg
5.Operating force by handle: < 150N
6.Swing angle of hook body in horizontal: 45~90 degrees
7.Swing angle of hook body in vertical: 45degrees
8.Puling speed of electric capstan: 18~25m/min
9.Pull of electric capstan: 10KN~30KN
10.Working diameter of capstan: 250mm
11.Motor: three phase380V 50HZ or 400V 60HZ,Optional explosion-proof or non-explosion proof.
12.Brake: short circuit protection, overload protection
13.Optional Level of Protection: IP55,IP56,IP65,IP66

We offers kinds of marine towing hook for your option, please take the bellow as reference:
