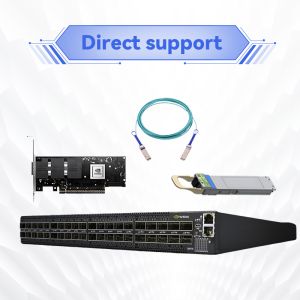

NVIDIA Quantum QM8700 Series 200G InfiniBand Switch

1. MQM8700-HS2F Product Overview

The NVIDIA Quantum QM8700 series represents the pinnacle of high-performance data center switching technology. These 200G InfiniBand smart switches are engineered to meet the escalating bandwidth demands of modern HPC, AI, cloud, and storage infrastructures. With up to 40 non-blocking 200G ports or 80 100G ports, they deliver an aggregate throughput of 16 Tb/s with extremely low latency, making them an ideal foundation for building scalable and efficient data centers of any size.

2. MQM8700-HS2F Key Characteristics

• 40x 200G or 80x 100G non-blocking InfiniBand ports
• 16 Tb/s aggregate switching bandwidth
• Extremely low latency for high-performance applications
• NVIDIA SHARP™ in-network computing acceleration
• Port splitting capability (200G to 2x 100G)
• Support for multiple network topologies (Fat Tree, DragonFly+, Torus)
• Energy-efficient design with 80 Plus Gold certified power supplies
• Comprehensive management options (CLI, WebUI, SNMP, JSON)

3. MQM8700-HS2F Core Technology

The QM8700 series leverages NVIDIA's groundbreaking Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology, which implements in-network computing directly within the switch silicon. This innovative approach offloads collective communication operations from servers, dramatically accelerating MPI, SHMEM, and NCCL frameworks. The switches support advanced features including adaptive routing, congestion control, and quality of service mechanisms that optimize fabric performance.

4. Working Principle

The NVIDIA Quantum switch architecture processes data as it traverses the network, eliminating the need for multiple data transfers between server endpoints. The embedded computing capabilities allow for aggregation and reduction operations to be performed at wire speed within the switch itself. This approach significantly reduces communication overhead and latency while maximizing effective bandwidth utilization across the entire network infrastructure.

5. MQM8700-HS2F Application Scenarios

The QM8700 series InfiniBand switches are ideally suited for:

• High-Performance Computing (HPC) clusters
• Artificial Intelligence and deep learning training environments
• Hyperscale cloud data centers
• High-performance storage area networks
• Scientific research and academic computing facilities
• Financial modeling and analytics platforms

6. MQM8700-HS2F Technical Specifications

Model Selection Guide

7. Competitive Advantages

The NVIDIA Quantum QM8700 series offers significant advantages over conventional network switches:

• In-Network Computing: SHARP technology accelerates collective operations by up to 10x compared to traditional switches
• Double Density: Unique port splitting capability provides 80x 100G ports from a 1U form factor
• Energy Efficiency: Power-optimized design reduces consumption during partial utilization
• Future-Proof: Backward compatibility with previous InfiniBand generations protects investment
• Comprehensive Ecosystem: Full support for industry-standard management and monitoring tools

8. MQM8700-HS2F Service & Support

All NVIDIA Quantum switches come with a standard 1-year warranty. We offer flexible procurement options including bulk pricing for large deployments. Our technical support team provides 24/7 consultation and troubleshooting assistance. Integration services are available for complex deployments, ensuring optimal configuration and performance.

9. Frequently Asked Questions

Q: Can the QM8700 switch be used with existing 100G InfiniBand equipment?
A: Yes, the switch is backward compatible with previous InfiniBand generations and supports auto-negotiation.

Q: What is the difference between the managed and unmanaged versions?
A: The managed version (QM8700) includes an on-board subnet manager, while the unmanaged version (QM8790) requires an external management platform like NVIDIA UFM.

Q: How does SHARP technology improve application performance?
A: By performing aggregation operations in the network rather than at endpoints, SHARP dramatically reduces communication latency and CPU overhead.

Q: What cabling options are supported?
A: The switch supports passive and active copper cables, active optical cables, and optical transceivers.

10. Important Considerations

• Ensure proper airflow direction (P2C or C2P) matches your data center configuration
• Verify compatibility with existing InfiniBand adapters and cables
• Operating environment must maintain temperature between 0°C and 40°C with non-condensing humidity
• For maximum performance, implement end-to-end 200G connectivity where possible
• Regular firmware updates are recommended to maintain security and performance
