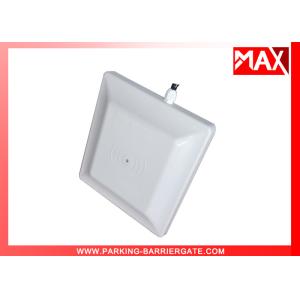

RFID Reader RS232 Interface With Multiple Tag UHF Reader 5-8M
MX-9U is a high performance UHF RFID integrated reader. It is
designed upon fully self-intellectual property. Based on
proprietary efficient digital signal processing algorithm, it
supports fast tag read/write operation with high identification
rate. It can be widely applied in many RFID application systems
such as logistics, access control, and anti-counterfeit and
industrial production process control system.
FEATURES
l Self-intellectual property;
l Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
l 902~928MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 30dbm(adjustable);
l 8dbi antenna optional with effect distance up to 6m*;
l Support auto-running, interactive and trigger-activating work
mode;
l Low power dissipation with single +9 DC power supply;
l Support RS232, RS485, Wiegand interface;
l Provide DLL and Demonstration Software Source code to facilitate
further development.
CHARACTERISTICS
l Absolute Maximum Rating
| ITEM | SYMBOL | VALUE | UNIT |
| Power Supply | VCC | 16 | V |
| Operating Temp. | TOPR | -10~+60 | ℃ |
| Storage Temp. | TSTR | -25~+80 | ℃ |
A
l Electrical and Mechanical Specification
Under TA＝25℃,VCC＝+9V unless specified
| ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
| Power Supply | VCC | 8 | 9 | 12 | V |
| Current Dissipation | IC |
| 350 | 650 | mA |
| Frequency | FREQ | 902 |
| 928 | MHz |
| Effective Distance | DIS | 300 | 500 |
| cm |
Wiring Diagram:
| No. | Items | Details |
| 1 | Red | Power supply with 12V+ |
| 2 | Black | Power GND |
| 3 | Brown | RS485A+ |
| 4 | Orange | RS485B- |
| 5 | Yellow | WG-D0 |
| 6 | Grey | WG-D1 |
| 7 | Rose Red | TriggerT+ |
| 8 | Black | TriggerT- |
| 9 | Purple | RS232-RXD |
| 10 | White | RS232-TXD |
| 11 | Black | GND |
