| Brand Name : | BLG/OEM/ODM |
| Model Number : | CAT5E LAN Cable |
| Certification : | CE/ROHS/ISO |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, L/C |
| Supply Ability : | 3000 Rolls per Week |
| Delivery Time : | 10-15 Work Days |

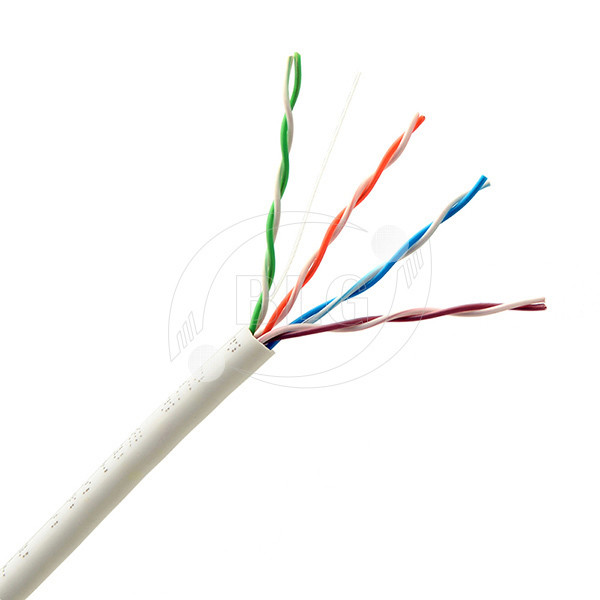

24AWG Bare Copper Ethernet Networking Cable Cat5e UTP 1000FT Per Roll
High performance ANSI/TIA/EIA 568C.2 compliance Category 5e UTP cables for mission critical LAN applications or Structured Cabling Systems at affordable prices.
Materials and Dimentions:
| Conductors | (8) 24AWG Solid Copper/CU (configured as four pairs) |
| Insulation | Polyethylene, .0.91mm |
| Insulation Color Code | Pair 1: Blue & White w/ Blue Stripe |
| Pair 2: Orange & White w/ Orange Stripe | |
| Pair 3: Green & White w/ Green Stripe | |
| Pair 4: Brown & White w/ Brown Stripe | |
| Jacket | PVC |
| Overall Diameter | 5.30mm |
Mechanical Characteristics:
| Operating Temperature | Weight | Agency Listing |
| -20degC to +75degC | 24 lbs/Mft | CM Rated, CE/RoHS Verified |
Electrical Characteristics:
| DCR | DCR Unbalance | Characteristic Impedance | Skew | Capacitance |
| 9.38 Ω/100m | 5% | 100 Ω (+/-15) | 40 ms/100m (max.) | 5.6 nF/100m (mutual) 330 pF/100m (pair-to-pair ground unblanced) |
Packing and Delivery:
