| Brand Name : | KAIXIANG |
| Model Number : | AC400-1000KVA |
| Certification : | ISO9001 |
| Price : | negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 15 Sets per Month |
| Delivery Time : | Within 30 working days |
AC Genset Load Bank AC 1000KVA Load Bank Cabinet Grey Casing Color
Product description
1.Supply most robust, high-capacity designs
2.intelligent operator controls,safety indication layouts,
adjustable load step resolution, and lightweight designs
3.solution for regularly scheduled maintenance testing and
commissioning of mission-critical standby emergency power systems
Technical Parameter
| Rating Voltage/Frequency | 400VAC/50Hz, 3 phase 4 wire, |
| Voltage range | 400v 50hz ±10% |
| Max Rated power | Apparent Power: 1000kVA |
| Load Resolution | Resistive load:1.2.2.5.10.10.20.50.100.200.200.200kw |
| Load Tolerance (each step) | ±5% |
| Load Tolerance(overall) | ±3% |
| Display Precision | 0.5 class |
| Control Power | AC380VAC/50Hz,3 phase 4 wire |
| Wire Connection | Load power supply input——Copper bar (star coupling) |
| Communication Interface | RS485, |
| Casing Dimensions and Cooling | about 4000*2350*2591mm (length*width*height) Forced air cooling,Horizontal inlet air,Vertical cooling |
| Weight | About 3600kgs/set |
| Transportation | Hoisting, there are lifting lug in top of casing |
| Casing Color | Grey(RAL7035) |
| Ambient Temperature | -10℃~+50℃ |
| Relative Humidity | ≤95% |
| Altitude | ≤1500 meter |
| Atmospheric Pressure | 86~106kPa |
| Contactor | Schneider |
| Fuse | DELIXI |
| MCU | INFINEON |
| Data processing software | Kaixiang(self-developed) |
| Alloy Resistance | Kaixiang(self-developed) |
Product Advantage
User could load any power within rated power, can test stable state
three-phase voltage, current, active power, apparent power, power
factor, frequency, running time of generating set.

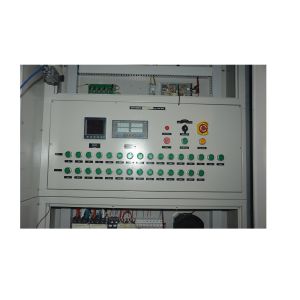

Whether load/unload by manual control panel or by PC software
control, user can pre-set the power then press the master load
button.
Control mode: user can choose local manual control or Intelligent
control(PC control)
Application
KX Load Banks can be used to satisfy the requirements for emergency
stand-by power systems. These requirements concern acceptance
testing and periodic on-site testing and maintenance of emergency
and stand-by power systems. The essence of the requirements is that
emergency and stand-by power systems are to be tested under load.
|   |
