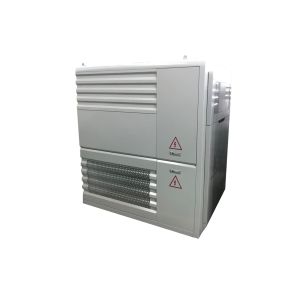

    High Precision AC 500kw Load Bank With Electronic Intelligent Three Phase

    Ask Lasest Price
    Brand Name : KAIXIANG
    Model Number : 500KW
    Certification : ISO9001
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram, D/P
    Supply Ability : 20 SETS ONE MONTH
    Delivery Time : ONE MONTH AFTER GET DEPOSIT
    • Product Details
    • Company Profile

    High Precision AC 500kw Load Bank With Electronic Intelligent Three Phase

    Automatic AC 500kw Load Bank Accurate With Electronic Intelligent Three Phase

    Product Description


    The system can accurately test output power and load capacity with all kinds of generators. System consists of testing/control and load bank, mainly includes AC load bank, data capture system, auto load/unload control system, heat dissipation device, assist control and PC software. User can control load bank through local control panel, also through software.

    Technical Parameters

    Rating Voltage/Frequency380VAC/50Hz, 3 phase 4 wire,
    Rated Load PowerResistive load: 500kW
    Installed CapacityResistive load: 500kW
    Load Step1,2,2,5,10,20,20,50,100,100 200kW, min step load: 1kW
    PF(Power Factor)1
    Load Tolerance (each step)±5%
    Load Tolerance(overall)±3%
    Display Precision0.5 class
    Control Power400VAC/50Hz, 3 phase 4 wire, 230V 1-phase
    Wire Connection

    Load power supply input——Copper bar (star coupling)
    Control power supply input——Connector-bar

    InsulationF
    Duty CycleContinuous
    Casing Dimensions and Coolingabout 1550*1250*1680mm (length*width*height) Forced air cooling,Horizontal inlet air,Horizontal outlet air
    WeightAbout 700kgs/set
    TransportationHoisting, there are lifting lug in top of casing
    Casing ColorGrey(RAL7035)
    Ambient Temperature-10℃~+50℃
    Relative Humidity≤95%
    Altitude≤1500 meter
    Atmospheric Pressure86~106kPa
    ContactorSchneider
    FuseDELIXI
    MCUINFINEON
    Data processing softwareKaixiang(self-developed)
    Alloy ResistanceKaixiang(self-developed)


    Product Advantage

    1. High Efficiency Data Management: display real-time testing data, generate form, curve graph or report automatically, also can put data into storage. According to generator set No. set up testing file, support to query at any time, and improve data management efficiency.
    2. Comprehensive Protection Function: multiple protection, like over temperature, smoke. When in danger, automatically terminate the test and give alarm to protect safety of personnel and equipment.

    Application

    1.New Load Bank Technology: using the international advanced AC load bank technology, overcome the old water bank defects, such as bear bumpy, unable to use when go to sea, realize Mooring Trial and Sea Trail, and simulate the real working condition of generator running.
    2. Mature Manufacturing Technology: load element using excellent anti-corrosion materials, waterproof insulation container packaging, suitable for adverse environment such as ocean. Internal layout is reasonable, air channel is clear, rapid heat emission, and satisfy continuous working need.
