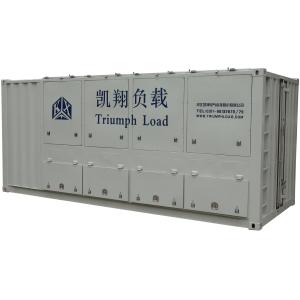

2400 KW Resistive Reactive Load Bank , Intelligent AC Electronic Load Bank

    Buy cheap 2400 KW Resistive Reactive Load Bank , Intelligent AC Electronic Load Bank from wholesalers

    Buy cheap 2400 KW Resistive Reactive Load Bank , Intelligent AC Electronic Load Bank from wholesalers
    • Buy cheap 2400 KW Resistive Reactive Load Bank , Intelligent AC Electronic Load Bank from wholesalers
    • Buy cheap 2400 KW Resistive Reactive Load Bank , Intelligent AC Electronic Load Bank from wholesalers

    2400 KW Resistive Reactive Load Bank , Intelligent AC Electronic Load Bank

    Ask Lasest Price
    Brand Name : KAIXIANG
    Model Number : AC10.5-2400KW
    Certification : ISO9001
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,
    Supply Ability : 10 SET ONE MONTH
    Delivery Time : ONE MONTH AFTER GET DEPOSIT
    • Product Details
    • Company Profile

    2400 KW Resistive Reactive Load Bank , Intelligent AC Electronic Load Bank

    Display Voltage And Current Three 10.5KV 2000KW Medium Voltage Load Bank


    Product Description


    1. Load testing: load power that not beyond the rated power, testing and display stable state 3 phases voltage, current, active power, frequency, working time, etc of generator sets.

    2. Load/unload with one key:Either by manual control or software control, user can preset the power, then press load master button. Load bank loaded according to preset power to avoid load fluctuation during the power changing.

    3. Control Pattern: user can choose local control and intelligent control.

    4. Local Control: There is local control panel with several power steps; user can load/unload by button.


    Technical Parameters


    Voltage/Frequency10.5kV/50Hz, 3 phase 3 wire
    Rated power2400kw
    Load Resolution100KW*3.200KW*3.500KW*3
    PF(Power Factor)1
    Load Tolerance (each step)±5%
    Load Tolerance(overall)±3%
    Display Precision0.5 class
    Control Power380VAC/50Hz,
    WeightAbout 9000kgs/set
    Size6058*2438*2591mm

    Technology Advantages

    1. Users can set adjustable discharge power according to capability parameter and test request.
    2. Discharge time can be set: load can be closed time out.
    3. Voltage and current value can be displayed with digital meter.
    4. The complete machine is of resistance breaking automatic overheated adopts new power consumption component.
    5. AC load bank is of all kinds of specifications and series, and include resistance, inductive and capacitive load.
    6. It ‘s of machine combination function.


    Application


    It is used with Engine Generators, Battery Systems, UPS Systems, Inverters, Ground Power Units, Auxiliary Power Units, Aircraft Power Generators, Wind Generators, and Hydro Generators.
