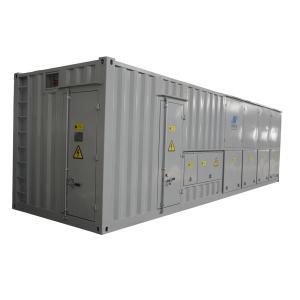

    Forced Air Cooling Model Variable Load Bank 3 Wire With Manual Panel Control

    Ask Lasest Price
    Brand Name : KAIXIANG
    Model Number : AC20-2200KW
    Certification : ISO9001
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,
    Supply Ability : 10 SET ONE MONTH
    Delivery Time : ONE MONTH AFTER GET DEPOSIT
    • Product Details
    • Company Profile

    Forced Air Cooling Model Variable Load Bank 3 Wire With Manual Panel Control

    Remote Control There Phase 20Kv 2200KW Medium Voltage Load Bank


    Product Description


    1. Automatic AC load bank main used to test the capability and aging degree for high-power ups on-line, inverter, switch power and diesel generator set for electric power, telecom department and manufacturer.

    2. It can ensure the reliability of constant power charge that adopts uniformly stepped power input, energy consumption work model and forced air-cooling model.

    3. It is of high power density, no red hot phenomenon and automatic protection function overheated.


    Technical Parameters


    Rating Voltage/Frequency20kV/50Hz, 3 phase 3 wire
    Rated power2000kw
    Load Resolution400KW.800KW.800KW
    PF(Power Factor)1
    Load Tolerance (each step)±5%
    Load Tolerance(overall)±3%
    Display Precision0.5 class
    Control Power380VAC/50Hz,
    WeightAbout 15000kgs/set
    Wire Connection

    Load power supply input——Copper bar (star coupling)

    Control power supply input——Connector-bar

    Size9150*2438*2591mm

    Technology Advantages

    1. Multiple control mode: (1) manual panel control (2) remote control (3)software control

    2. Multiple display function: voltage, current, frequency, power factor, active power, reactive power, apparent power etc.

    3. Multiple protection function: overvoltage, overcurrent, overheat, over low blowing rate, blower overheat, blower phase sequence reverse protection, smoke alarm etc.

    4. Forced air cooling: industrial heavy duty fan, horizon air intake, upwards outlet, low noise.


    Application


    Eliminate the carbon deposition of generator
    As the generator loading system
    Periodic running test for standby generator
