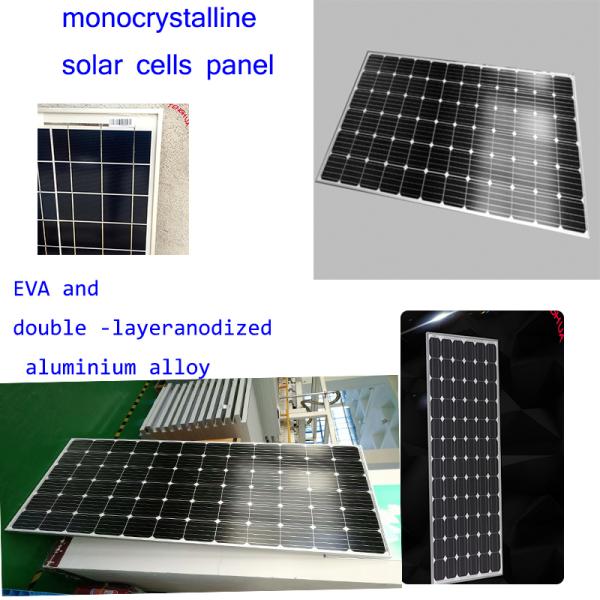

B Grade Photovoltaic Production Stock Monocrystalline Solar Panels
for LED Power
Product Description
| Mechanical Parameters (solar panels No and the arrange can be
customized ) |
| Cell Type | mono-crystalline 156x156mm (6inch) |
| No. of Cells | 60 (6x10) |
| Pmax | 250w |
| Vmp | 30.40v |
| IMP | 8.39V |
| VOC | 36.48V |
| ISC | 9.23A |
| Module efficency | 16% |
| Dimension | 1640x992x40mm |
| Glass | 32mm, High Transmission, Low Iron, Tempered Glass |
| Junction Box | ≥ IP67 |
| Output Cable | UV resistant solar cable ,900mm-section 4.0mm2(12AWG) |
| Frame | Double Anodized Aluminum Alloy |
| No. of Bypass Diodes | 3&4 |
| Connector | MC4 / IP67 /YT08-1/IP67/Amphenol H4/IP68 Compatible |
| Working Conditions |
| Maximum System Voltage | DC 1000V |
| Operating Temperature | -40°c~+85°c |
| Maximum Series Fuse | 15A |
| NOCT | 45±2°c |
| Application Class | Class A |
| Temperature Coefficient |
| Temperature Coefficient of Pmax | -0.42%/°c |
| Temperature Coefficient of Voc | -0.32%/°c |
| Temperature Coefficient of Isc | +0.06%/°c |
| All of the cell type can be PV or assembled as customer requirment
and application |
Packaging & Shipping
packed by standard wooden case. at the bottom of the case is
moistureproof linoleum, then covered with waterproof membrane.
Shipping: Within 15 workdays after order confirmed
Advantages:
why you should choose us ?
1) We have the over workshops of 30000 m2, with 20 Million RMN for
investment for the solar panel products
2) 200 staff including 20 technical expert engineer and 10
researcher
3)Our products pass the TUV,CE,IEC certificate
4)We have the independent export departments and the products now
to Japan ,India,South America,Middle-east and so on
5)our product can resist the bad enviroments
FAQ:
Q1: Are you Manufactory or Trading Company?
A: We are factory and haveown independent trading company.
Q2: Do I have to pay for samples?
A: Due to the cost and the quntity of the goods .
Q4: How much the transportation freight will be for the samples?
A: The freight depends on the weight and packing size and your
area. Please contact us for detail informations.Q5: How can I get
your quotation?
A: Please send us detailed order information - Quantity,
Specification via email or skype, then we will offer you the latest
quotation.
Q6: Can we have our own logo or company name on your products or
the package?
A: No Problem. Your logo can be putted on our products by sticker.
And if the cartons printing needed to be customized, please send us
the artwork and detailed requirements by email.
Q7: How to order?
A: Please send us your inquiry with the following one of the
contact method.
