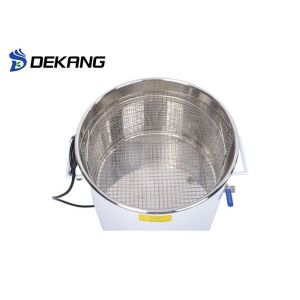

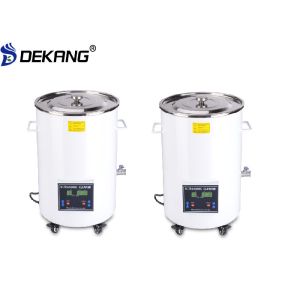

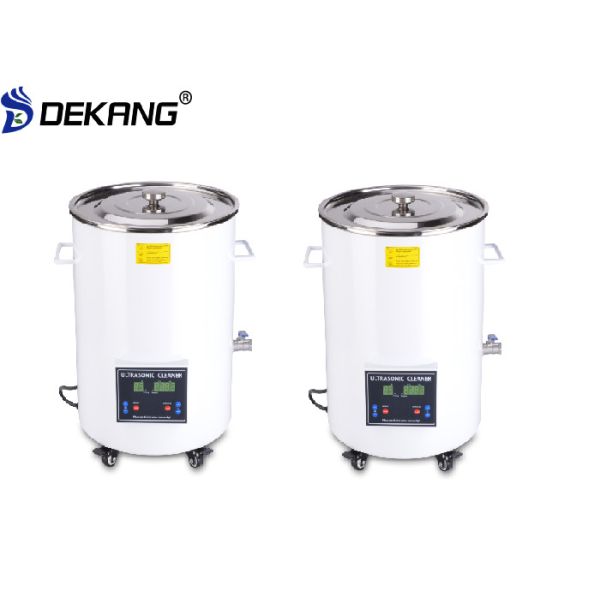

32L Digital Controlled barrel Ultrasonic keg sieve Cleaner
Why ultrasonic cleaner ?
Electrical energy is converted into mechanical vibrations thanks to
special elaborated transducers.
These vibrations are transferred into the fluid through the walls
of stainless steel. This creates tiny microscopic vacuum bubbles,
which cause consecutive implosions (cavitation). The high-energy
jets that are thus created can efficiently remove dirt from
surfaces an materials placed in the cleaning bath.
How to use the machine ?
1) Just need to fill in the water with tank, over 3/2 lines,below
max line.
2) Put the mdical tools in the stainless tank,
3) Setup ultrasonic time and water tempeature .
4) wait till and washing cycle finished.
Specification:
|
| Model No. | Tank Size(mm) | Overall Size(mm) | Capacity(L) | Frequency(KHz) | Ultrasonic Power(W) | Heating Power(W) | Timing(min:secs) | Temp(ºC) | Drainage |
| | | | | | | | | |
| DK-610R | Φ300*220 | 410*350*520 | 15 | 28/40 | 0-300 | 400 | 1-99 | 0-80ºC | Yes |
| DK-810R | Φ350*240 | 460*400*540 | 22 | 28/40 | 0-400 | 600 | 1-99 | 0-80ºC | Yes |
| DK-1210R | Φ400*260 | 510*450*560 | 32 | 28/40 | 0-600 | 800 | 1-99 | 0-80ºC | Yes |
| DK-1810R | Φ450*280 | 560*500*580 | 44 | 28/40 | 0-900 | 1000 | 1-99 | 0-80ºC | Yes |
| DK-2410R | Φ500*300 | 610*550*600 | 58 | 28/40 | 0-1200 | 1200 | 1-99 | 0-80ºC | Yes |
| DK-3210R | Φ600*400 | 710*650*700 | 90 | 28/40 | 0-1600 | 1600 | 1-99 | 0-80ºC | Yes
|
Features:
. Dewaxing and degreasing function
. 0-80ºC temperature range
. SUS 304 stainless steel tank
. Industrial grade integrated circuit
. 1-99 minutes working time
. 28KHz for gross rinse or 40KHz for intensive rinse
. Auto stand-by, sleep, and wake-up by one key-press mode
. Digital controller of high-precision and a long service-life
20 working days after confirming order,detail delivery date should
be decided according to
production season and order quantity.
Application:
About Ultrasonic Cleaning Technology:
Ultrasonic cleaning is a technology that uses high frequency sound
waves (ultrasonic: above the range of human hearing) to agitate an
aqueous or organic medium (cleaning chemistry) that in turn acts on
contaminants adhering to substrates like metals, plastics, glass,
rubber and ceramics.
Barrel ultrasonic cleaners are suitable to clean sundry sieves,
irregular and complex specialized instruments, components and PCBs
of sundry shops, workshops, factories, etc; smash, emulsify,
scatter, hydrolyze, extract, degas certain analyzed stuffs in labs.
