CBN / PCBN Cutting Tools Finish Machining Brake Disc / Brake Rotor
with Positioning hole
1. Halnn Tools CBN Cutting Tools Machining Brake Disc
As the main component of the car, the brake disc is a powerful
guarantee for safe driving. With the continuous updating of the
automotive industry, higher requirements are placed on the tools
for machining brake discs.Halnn Tools has successively launched the
new material CBN inserts BN-S300/BN-K30/BN-K20/BN-K10,as the
replacement tool materials.
2. Why we Choose Halnn Tools CBN Cutting Tools ?
Halnn researched 4 type CBN inserts grades specific for machining
brake disc which can meet their requirements on the process and the
surface roughness. The following will share you 4 kinds of CBN
inserts.
(1) For roughing process: BN-S300 will be your right choice, the
advantages: large cutting depth,
good wear resistance and long tool life.
(2) For finishing process:BNK30, BN-K20and BN-K10 can be the right
choice, BNK30 can be made of both brazing and solid type, it has
sharp cutting edges, high precision and long tool life. BN-K20
belong to brazing CBN insert, it has multi-cutting edges, will be
more economic.BN-K10 belong to PCBN insert.
3. CBN Cutting Tools CBN Cutting Conditions
| Insert Grade | Suited Materials | Machining Type | Typical Application |
| BN-K20 | Gray Cast Iron | Roughing, Finishing | Brake Disc, Brake Drum, Cast Iron Engine,Gearbox |
| BNK30 | Cast Gray Iron, Iron based alloy | Roughing, Finishing |
| BN-K10 | Cast Gray Iron, Powder Metallurgy | Finishing | Brake Disc,Powder Metallurgy Parts, Valve seat ring, Engine Cylinder bore |

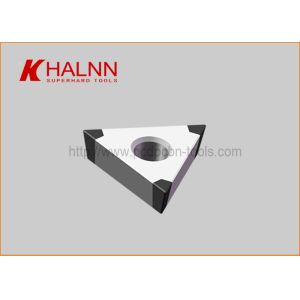

4.Pictures of Halnn Tools CBN Cutting Tools
5.Detailed Data of CCGW CBN Tools
|
Type | Dimension |
Standard Chamfer | Grades |
| L(mm) | φI.C(mm) | S(mm) | φd(mm) | r(mm) | BN-H11 | BN-H20 | BN-K20 | BNK30 |
| CCGW09T304-2S | 9.7 | 9.525 | 3.97 | 4.4 | 0.4 | S01015 S01020 S01025 S02020 | ● | ● | ● | ● |
| CCGW09T308-2S | 9.7 | 9.525 | 3.97 | 4.4 | 0.8 | ● | ● | ● | ● |
| CCGW09T312-2S | 9.7 | 9.525 | 3.97 | 4.4 | 1.2 | ● | ● | ● | ● |
| CCGW120404-2S | 12.9 | 12.7 | 4.76 | 5.5 | 0.4 | ● | ● | ● | ● |
| CCGW120408-2S | 12.9 | 12.7 | 4.76 | 5.5 | 0.8 | ● | ● | ● | ● |
| CCGW120412-2S | 12.9 | 12.7 | 4.76 | 5.5 | 1.2 | ● | ● | ● | ● |
6.Application Case
| Item | Brake Drum Manufacturer | Image |
| Component Materials | FC250 (HT250) |  |
| Machining Process | Roughing, Dry Cutting |
| Hardness | HB170~HB210 |
| Selected insert | BNK30 TNGA160408-6S |
| Testing Performance Comparison |
| Insert Materials | Cutting Parameters | Machining Qty |
| Halnn BNK30 | Vc=1000,Fr=0.2,ap=0.3 | 160 |
| Other PCBN | Vc=800,Fr=0.2,ap=0.3 | 100 |
| The tool life improved 60% |
