10/100/1000M PoE Power Splitter Ethernet Surge Protection Device

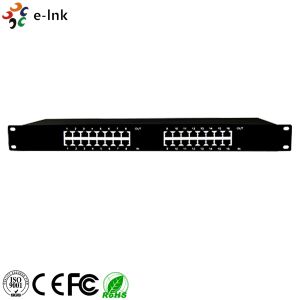

16-ports 10/100/1000M Ethernet Network Surge Protector
Advantages
► 220VAC Control Line, RJ45 port;
► Multi-level protection circuit, residual depression;
► Four wire protection: 1.2.3.6 line
► High transmission band, fast response, low insertion loss;
► Exquisite appearance, small size, easy to stall;
► Ground through a special process to avoid signal interference.
► It has huge flow capacity, sensitive reaction
► Excellent performance, and low-loss insert
Technical Indexes
| Item | Specification |
| Model | LNK-SPD1600G |
| Ethernet | Continuous Operating Voltage | 5V |
| Maximum Working Voltage | 6V |
| Nominal Discharging Current In (8/20us) | 2KA |
| Maximum Discharging Current Max (8/20us) | 3KA |
| Limit Voltage Up | 1~2 | ＜20V |
| 10/700us | 3~6 | ＜20V |
| Insulation Resistance | ≥0.4MΩ |
| Insertion Loss | ≤0.2dB |
| Transmission Rate | 10/100/1000Mbps |
| Response Time | ≤0.5ns |
| Protection Pins | 1, 2, 3, 6 |
| Protection lines | 16 Channels |
| Environmental | Operating Temperature | -20℃~70℃ |
| Storage Temperature | -20℃~95℃ |
| Relative Humidity | 5% to 95% non-condensing |
| Stability | MTBF | ＞30000h |
Overview
This product is applicable to the lightning and electric surge
protection of the Ethernet signal circuit, control wiring and power
circuit of monitor camera. It can combine the above mentioned
lightning protection function into one. Its housing adopts
integrated iron structure with small volume and ultra low residual
pressure output. Design of this product considers fully that the
electrode capacitance and distributed capacitance would lessen data
signaling with small insertion loss, which can satisfy the
requirement of video signal transmission, and can response to the
transient over voltage quickly.
Ordering Information
| Model | Description |
| LNK-SPD1600G | 16-ports 10/100/1000M Ethernet Network Surge Protector |
