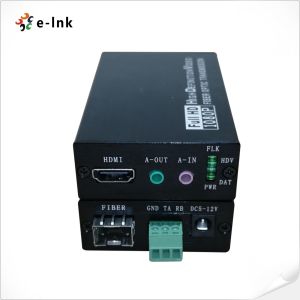

115200M 3Gbps HDMI Video Converter Bidirectional Stereo Audio RS232
HDMI Fiber Extender Bidirectional Stereo Audio RS232 HDMI Over
Fiber Converter
HDMI Over Fiber Converter Advantages
► Transmits HDMI video signals, RS232 and audio up to 20km over a
single fiber cable;
► Support resolution up to 1920*1200@60Hz ;
► Special support 1600*1200 @60HZ
► Support external bidirectional stereo audio transmission;
► Compliance with HDMI 1.4B 3D and HDCP 1.2 standard
Technical Indexes
Video | Maximum data rate | 6.75Gbps |
Compliant | Special support 1600*1200 @60HZ |
| Audio | Interface | 3.5MM external stereo audio |
| Transmitter | 1Ch Input + 1Ch Ouptut |
| Receiver | 1Ch Input + 1Ch Ouptut |
| RS232 | Interface | 3-Pin Terminal Block |
| Baud Rate | ≤115200 |
| Data Bits | 8 bits |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode |
| Wavelength | 850nm/1310nm/1550nm |
| Interface bandwidth | 3Gbps |
| Transmission distance | Transmission@1920*1200@60Hz Multi-mode fiber: <500M Single-mode fiber: 20km |
Overview
The LNK-HF100DA Series HDMI Fiber optic extender provides extension
of HDMI, bidirectional audio and RS232 over one fiber optic cable,
it supports HDMI1.4 and MHL2.1 dual mode, it is fully compatible
with MHL2.1, HDMI 1.4b, HDMI 1.4b 3D and HDCP 1.4, high resolution
up to 1920*1200@60Hz. The extender can use for a wide range of
applications requiring long distance transmission of high
resolution with high quality by its good stability and powerful
security.
Ordering Information
Model | Description |
LNK-HF100DA | 1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber
Optic Extender, LC(SFP), Multi mode fiber, 500m, including 1
transmitter & 1 receiver, used by pairs |
LNK-HF100DA-20 | 1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber
Optic Extender, LC(SFP), single mode fiber, 20km, including 1
transmitter & 1 receiver, used by pairs |
