Reverse Osmosis
Reverse osmosis (RO) is a water purification technology that uses a
semipermeable membrane to remove ions, molecules and larger particles from drinking water. In reverse osmosis, an applied
pressure is used to overcome osmotic pressure, a colligative
property, that is driven by chemical potential differences of the solvent, a
thermodynamic parameter. Reverse osmosis can remove many types of
dissolved and suspended species from water, including bacteria, and is used
in both industrial processes and the production of potable water.
The result is that the solute is retained on the pressurized side of the
membrane and the pure solvent is allowed to pass to the other side.
To be selective", this membrane should not allow large molecules or ions
through the pores (holes), but should allow smaller components of
the solution (such as solvent molecules) to pass freely.
We offer a wide range of industrial reverse osmosis Plants,
according to We need for tap water, brackish water & sea water application. Theproduction range starts from 100
LPH (Liter per hour) to 100 M3 per hour for 400 IBS to 45,000 TDS
and reduce TDS @ 90-99% .All our industrial reverse osmosis Plants
are carefully customized and configured to suit the individual
requirement of the output water, whichvaries from normal drinking
application to the specific usage, such as food Processing,
pharmaceuticals and boiler feeding requirement. Thisis done through
an in depth and complete chemical analysis of the feed water
available to us in specific locationReverse Osmosis has gained wide
acceptance and popularity due to its simple operation and the
ability to withstand variations in feed water quality

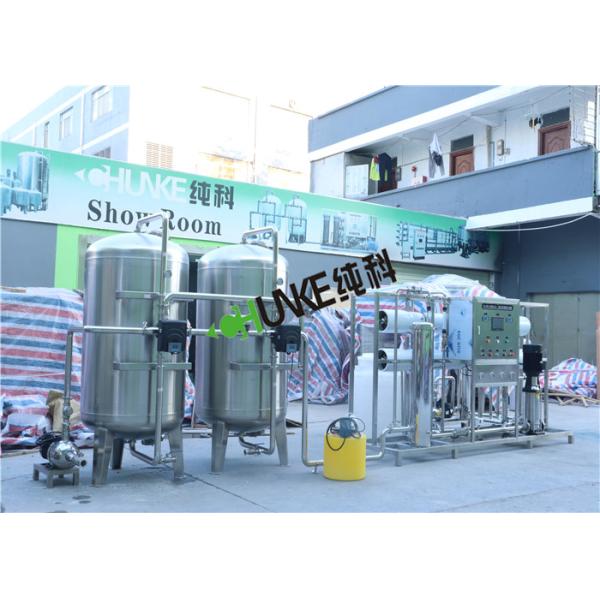

5000L Ro plant detail configuration as below :
(we can do 0.5T to 500T per hour RO system , the project also can
make to order , can choose other brand pump and membrane , like pum , Dow membrane , Toray Membrane and so on )
| No. | Item | Origin/brand | Quantity |
| 1 | Raw water tank is 5.0 m3 | Customer supply | 1pc |
| A. Material: PE anticorrosion | | |
| B, specification: 1800×2300mm | | |
| C. Water level control switch | | 1pc |
| 2 | Raw water pump (CHL8-40) 304 stainless steel | CNP | 2pcs |
| A. Flow rate: 8.0m3/ H Head: 35m K= 1.5KW | |
| B, including: water inlet valve, check valve pipe, etc | | 1set |
| 3 | Quartz sand filter 900×2150mm | CHUNKE | 1pc |
| A. Material of tank: SS304 | CHUNKE | 1pc |
| B.Auto Valve F75A | RUNXIN | 1pc |
| C. Upper and lower water distributor | | 1set |
| D. Clean water quartz sand | CHINA | 1300kg |
| 4 | Active carbon filter 900×2150mm | CHUNKE | 1pc |
| A. Material of tank: SS304 | CHUNKE | 1PC |
| B.Auto Valve F75A | RUNXIN | 1PC |
| C. Upper and lower water distributor | | 1SET |
| D. Activated carbon filter material | High quality coconut shell | 350KG |
| 5 | Dosing system (scale inhibitor) | SEKO | 1套 |
| A. Flow rate 1.0L/H Head: 70M | | |
| B. Dosing barrel 40L (PE) | | 1个 |
| C. Debugging potions | | 25KG |
| 6 | Dosing system (reducing agent) | SEKO | 1set |
| A. Flow rate 1.0L/H Head: 70M | | |
| B. Dosing barrel 40L (PE) | | 1pc |
| C. Debugging potions | | 25KG |
| 7 | 5um security filter 40 inch 7 core | CHUNKE | 1set |
| A. Shell material: 304 stainless steel | CHUNKE | 1pc |
| B. Overall size: 230×1000MM | | |
| C, 40 "×5 m PP filter element | GUANGZHOU | 7pcs |
| 8 | HP Pump(CDLS8-14) SS304 | CNP | 1pc |
| A. Flow rate 10m3/h Head: 115m K= 5.5kW | | |
| B, including: water inlet valve, check valve pipe, etc | | 1 batch |
| 9 | One stage reverse osmosis pure water unit yield: 5.0m3/h,
desalination rate: 96-99%, system water utilization rate: 55-65% | 1set |
| Include | A. Membrane shell 8040-3, 8040-2 | CHUNKE | 2pcs |
| Material: FRP | VONTRON | 5pcs |
| B. Membrane element RO-8040 | CHUNKE | 1pc |
| C. 304 Stainless steel frame | Brass material | 1pc |
| D. Inlet electromagnetic valve DN50 | Brass material | 1pc |
| E. Concentrated water solenoid valve DN32 | SS 304 | 1pc |
| F. Inlet water regulating valve DN40 | SS 304 | 1pc |
| G. Concentrated water flow control valve DN32 | UPVCmaterial | 1pc |
| 10 | Pressure gauge | China | 1 batch |
| A. Reverse osmosis pressure gauge 0 ~ 25kGF /cm2 | China | 2pcs |
| B. Pretreatment pressure gauge 0 ~ 7kgf/cm2 | CHINA | 4pcs |
| C. High voltage protection switch (P-06) | CHINA | 1pc |
| D. Low-voltage protection switch (P-06) | CHINA | 1pc |
| E. Inlet conductivity meter | CHINA | 1pc |
| F. Water-producing conductance instrument | CHINA | 1pc |
| 11 | Flow meter 0-10t /H | CHINA | |
| A. Water production flowmeter | | 1pc |
| B. Concentrated water flowmeter | | 1pc |
| C. Backwater flowmeter | | 1pc |
| 12 | Pure water tank (capacity: 5.0m3) | Customer supply | 1pc |
| A. Material :PE anticorrosion | | |
| B, specification: 1800×2300mm | | |
| C. Water level control switch | | 1pc |
| 13 | Cleaning system (7.0m3/h) | | 1pc |
| ① Cleaning pump (CHM4-4, stainless steel) | CNP | 1pc |
| Flow: 7.0m3/ H Head: 19m | | |
| Power: 0.75 kw | | |
| Include: return valve, pipe, etc | | 1 batch |
| - . Clean water tank (300L)
| CHUNKE | 1 pc |
| Material: PE anticorrosion | | |
| Including: inlet and outlet water pipeline 1 batch | | |
| | CHUNKE | 1set |
| Model: 40 "×5 Core village quality: stainless steel | CHUNKE | 1pc |
| "40 x 5 microns PP filter | | 5pcs |
| 14 | Connect pipe fitting and valve | TAIWAN | 1set |
| A. Valves and pipes (SS304) DN15-DN50 | TAIWAN | 1 batch |
| B. Valves and pipes (304 stainless steel) dn15-DN40 | CHINA | 1 batch |
| 15 | Electric control system | CHUNKE | 1 set |
| Automatic CONTROL of PC program controller, Schneider electric, RO
film automatic flushing, water level control of original and pure
water tanks automatically stop and start up, functions of low
pressure, high pressure, overheat, overcurrent, overload protection
and alarm, manual operation is reserved. | |
| A. Air switch | Schneider | 2pcs |
| B. Ac contactor | Schneider | 1 batch |
| C. Thermal overload protector | Schneider | 1 batch |
| D. Insurance management | Schneider | 1 batch |
| E. Indicator light | Schneider | 1 batch |
| F. Third-gear switch; | Schneider | 1 batch |
| Scram button | 中 国 | 1set |
| G. PC automatic program controller | 中 国 | 1 batch |
RO System Includes:
Feed Water Pump
Pretreatment Filter (according to your water anlysis report choose
the Multi-media filter,Activated carbon filter,soften system )
PH Dosing system
Cartridge filter
CIP Clean System
High pressue pump
RO Membrane
Main Technical Parameters:
| Model | Flow rate (L/h) | Power(KW) | Water use efficiency | RO membrane | Dimension
L X W X H(mm) |
| RO-500L | 500 | 1.5 | ≥ 50% | 4040 | 1650X630X1800 |
| RO-750L | 750 | 2.5 | ≥ 50% | 4040 | 1870X630X1850 |
| RO-1000L | 1000 | 2.5 | ≥ 50% | 4040 | 1870X650X1850 |
| RO-2000L | 2000 | 3.5 | ≥ 50% | 4040 | 2440X650X1750 |
| RO-3000L | 3000 | 4 | ≥ 50% | 4040 | 2440X620X1850 |
| RO-5000L | 5000 | 7.5 | ≥ 50% | 8040 | 2000X900X1800 |
| RO-6000L | 6000 | 9.5 | ≥ 60% | 8040 | 3000X900X1800 |
| RO-8000L | 8000 | 13.5 | ≥ 60% | 8040 | 3000×900×1800 |
| RO-9000L | 9000 | 14 | ≥ 60% | 8040 | 4000X900X1800 |
| RO-10T | 10T/H | 19 | ≥ 60% | 8040 | 3000X900X1800 |
| RO-12T | 12T/H | 19.5 | ≥ 60% | 8040 | 4000X900X1800 |
| RO-15T | 15T/H | 23 | ≥ 60% | 8040 | 4000X900X1950 |
| RO-20T | 20T/H | 28 | ≥ 60% | 8040 | 5000X900X1950 |
| RO-30T | 30T/H | 55 | ≥ 60% | 8040 | 7000X900X1950 |
Flow Chart Of RO Water Treatment Machine
Raw water pump - Sand filter - Carbon filter -Cartridge filter -
High pressure pump- RO membrane host-RO Cleaning system
1. Raw water supply pump: To use CNP
2. High-pressure pump: To use CNP
3. Reverse Osmosis Membrane: To use DOW, China
4. Pre-treatment device: To use PVC tank with manual valve
5. Conduit: To use PVC
6. Electric standard configuration: PLC automatically control
7. Electrical components: To use Zhengtai's and Schneider's
products
8. Frame: To use stainless steel.
Reverse Osmosis Modules( RO)
RO system is key part for the water treatment system, which is
widely used to make the pure water and drinking water. RO membrane
removes many types of large molecules and ions from solutions by
applying pressure to the solution when it is on one side of a
selective membrane. The result is that the solute such as iron,
Virus, bacteria and solids is retained on the pressurized side of
the membrane and the pure solvent is allowed to pass to the other
side.
Piping, Valves & Fittings
The pipe, valves and fittings (including tubing) ball valves,
butterfly valves, piping used to the system is SS304. Reverse
Osmosis Modules is equipped with sample valve for the convenience
to check the product water.
Control devices
The whole automatic production line is achieved through the
converter and PLC programmer and data collector such as the liquid
lever sensor, flow sensor and etc. The whole production line is
monitored by remote computer. When the water level of the product
water tank is high, the system will stop automatically. When the
water level of the product water tank is low, the system will run
automatically.
Advantages of RO systems:
Running stablely, high desalination and recovery rate.
Easy to operate and small maintenance workload
Compact structure and saves installation place.
Highly efficient and low energy consumption
No secondary pollution and low operation cost
Applications for RO plants:
• Homes and villas
• Hotels/hospitals
• Commercial complexes
• Kindney dialysis Unit
• Poultry farms
• Food and beverages industry
• Bottled water plants
• Cooling tower /boiler feed water
Why Choose us?
We have professional QC team to check the equipment' s quality
before delivery. And we could provide the free technical training
anytime.
1. Provide complete OEM or ODM water treatment solution based on
your source water.
2. Our Engineer has over 20 years experience on water treatment
plant
3. We have the professional QC team to check the quality before
delivery.
4. The durable High-impact carton to protect the products.The
packaging is sturdy, so that there is no problem in transportation.
5. Reply in 12 hours.
6. Lead time for water filter cartridge is 5-7 working days.Lead
time for the water treatment system is 7-15 working days
