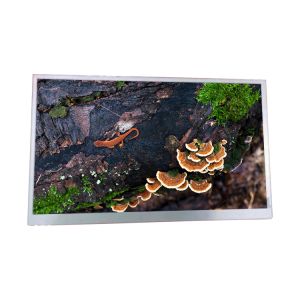

    Hannstar HSD101PFW5-C00 LVDS 1024*600 10.1 inch IPS TFT LCD module screen

    Ask Lasest Price
    Brand Name : HannStar
    Model Number : HSD101PFW5-C00
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000 Unit/Units per Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    Hannstar HSD101PFW5-C00 LVDS 1024*600 10.1 inch IPS TFT LCD module screen

    Hannstar HSD101PFW5-C00 LVDS 1024*600 10.1 inch IPS TFT LCD module screen


    HSD101PFW5-C00 Product details :


    HannStar LCD Screen HSD101PFW5-C00
    BrandHannStar
    Model P/NHSD101PFW5-C00
    Diagonal Size10.1"
    Panel Typea-Si TFT-LCD, LCM
    Resolution1024(RGB)×600, WSVGA 117PPI
    Pixel FormatRGB Vertical Stripe
    Active Area222.72(W)×125.28(H) mm
    Bezel Opening226.0(W)×128.5(H) mm
    Outline Dim.235(H)×143(V) ×5.6(D) mm
    TreatmentAntiglare
    Luminance500 cd/m² (Typ.)
    Contrast Ratio500:1 (Typ.) (TM)
    View Direction6 o'clock
    Response Time4/12 (Typ.)(Tr/Td)
    Viewing Angle80/80/70/80 (Typ.)(CR≥10)
    Operating ModeTN, Normally White, Transmissive
    Support Color262K/16.7M 45% NTSC
    Light SourceWLED [6S7P] , 20K hours , W/O Driver
    Weight285g (Typ.)
    Designed ForAutomotive Display
    Frame Rate60Hz
    Touch PanelWithout
    Interface TypeLVDS (1 ch, 6/8-bit) , 60 pins FPC
    Power Supply3.3/8.9/15.0/-7.0V (Typ.)(VDD/AVDD/VGH/VHL)
    EnvironmentOperating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C
    Hannstar HSD101PFW5-C00 LVDS 1024*600 10.1 inch IPS TFT LCD module screen

    HSD101PFW5-C00 Features:


    1.Highest quality touch LCD screen replacement parts


    2.Reasonable and competitive price.


    3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.


    4.Each assembly is tested before shipping and is 100% working;Quality control: All are tested before delivery,No any Dark Spots,Color Point,Deal Pixels.


    HSD101PFW5-C00 Shippment & Packing

    HSD101PFW5-C00 About Shipping:


    we will test them strictly before shipping.


    we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.


    Contact Us:


    1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (Not include public holiday)


    2. Working Hours: Monday to Saturday


    3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.


    4. Bulk order is acceptable, lower prices will be offered to you for bulk order.


    HSD101PFW5-C00 FAQ:


    Q: If I place order now,when will you ship the goods of HSD101PFW5-C00 ?

    A: The order will be shipped within 2-3 working days after received your payment.


    Q: Can I pay my order of HSD101PFW5-C00 via credit card ?

    A: Yes!you can use your credit card through your Paypal account.


    Q: Can you give me a discount if I need a large quantity of HSD101PFW5-C00 ?

    A: Of course!If you make a large order, we will give you a discount.


    Q: How long is the warranty ?

    A: We offer 90days warranty .
