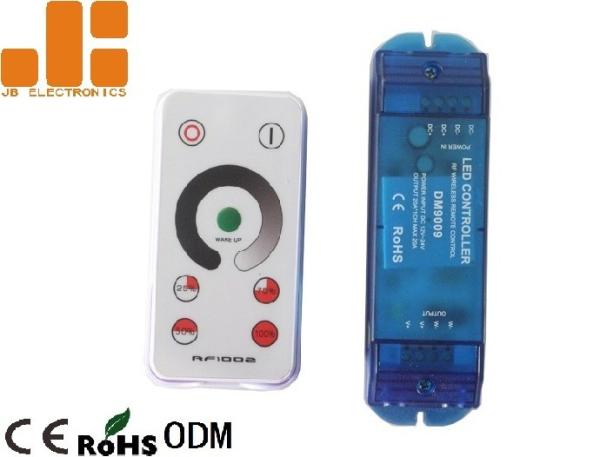

DC12-24V 1CH Max 480W RF Wireless LED Controller Touch Dimmer
Features:
1), DM9009 is the single channels product of 433.92MHz RF Wireless
LED Dimmer Series.
2), This is RF433.92MHz LED dimming controller, using button
control mode, the user can according to the actual needs, remotely
adjust the light to the appropriate brightness.
3),The remote control effect is stable, and the anti-interference
ability is strong.
4), Can only One to one remote control, 20 meters is the effective
controlling distance.
5), This controller is with 8 kinds of dynamic mode effect, 10
dimming function, 256 PWM precision, 10 level dynamic effect of
adjustable speed, static adjustable brightness.
6), At the same time, this controller has ultra-thin RF wireless
remote control, the ultimate slim body, loop mode, host and remote
shutdown, automatic memory function,etc.
Tech-parameters:
| 1, Remote Controller / Touch Dimmer |
| Input Voltage | DC3V ( CR2032 batteries) |
| RFID | 433.92MHz |
| Control Mode | Press Buttons |
| Size | L86*W40*H7(mm) |
| Weight | 40g |
| 2, Receiver / LED Driver |
| Input Voltage | DC12-24V |
| Output Si9gnal | Constant Voltage PWM Signal |
| Output Channels | Single channel |
| Output Current Load | 20A/CH, Max 20A |
| RFID | 433.92MHz |
| Effective Control Distance | 20 Meters |
| Working Temperature | -20~55℃ |
| Size | L150*W45*H33(mm) |
| Weight | 80g |
Specifications of LED RF Wireless Controller Series:
| Model NO. | Input Voltage | Channels | Max Current Load | RF Frequence | Max Output Power | Shell Color |
| DM9009 | DC12-24V | 1CH | 20A*1CH | 433.92MHz | 240W(12V)/480W(24V) | Blue |
| DM9010 | DC12-24V | 2CH | 10A*2CH | 433.92MHz | 240W(12V)/480W(24V) | Blue |
| CO6001 | DC12-24V | 3CH | 6A*3CH,Max16A | 433.92MHz | 216W(12V)/432W(24V) | Blue |
| DM9121 | DC12-24V | 1CH | 20A*1CH | 2.4GHz | 240W(12V)/480W(24V) | White |
| DM9122 | DC12-24V | 2CH | 10A*2CH | 2.4GHz | 240W(12V)/480W(24V) | White |
| DM9123 | DC12-24V | 3CH | 6A*3CH,Max 18A | 2.4GHz | 216W(12V)/432W(24V) | White |
| DM9124 | DC12-24V | 4CH | 5A*4CH | 2.4GHz | 240W(12V)/480W(24V) | White |
| DM9125 | DC12-24V | 1CH | 20A*1CH | 433.92MHz | 240W(12V)/480W(24V) | White |
| DM9126 | DC12-24V | 3CH | 6A*3CH | 433.92MHz | 216W(12V)/432W(24V) | White |
Function Instructions:
1), The remote control ID learning guide: Wake Up the remote, Press
(25%) button, Then Power on the controller, the light on controller
slow flashes 3 times, the ID is set.
2), The remote control ID clearance: Wake Up the remote, Press
(25%) button, Then Power on the controller, the light on controller
slow flashes 6 times, the ID is clearance.
3), Brightness Control Touch Ring from left (Min. BRT) to right
(Max.BRT), 1%--100% 50 levels brightness control.
4), 25%, 50%, 75%, 100% 4 brightness shortcuts.
5), Power off memory function.
6), All above operating on condition Touch remote wake up
7), The remote Sleep function: 30seconds without operation,
lengthen battery working life. Press WAKE UP to wake up the remote
control.
