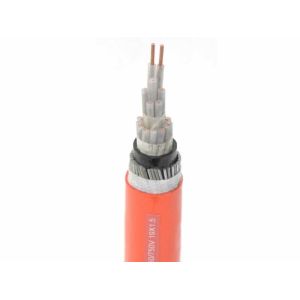

    Flexible Instrumentation Copper Control Cable For Measuring And Regulation

    Ask Lasest Price
    Brand Name : SUNWIN
    Model Number : LV XLPE Power Cable
    Certification : BS6500 and VDE0250
    Price : Negotiable
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    Delivery Time : 10 day
    • Product Details
    • Company Profile

    Flexible Instrumentation Copper Control Cable For Measuring And Regulation

    Control Cable,450/750V Control Cable


    Control Cable (450/750V Control Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.


    Construction:


    Control Cable is a flexible instrumentation cable designed for measuring, control or regulation in the field of process automation. It is a highly flexible multicore cable, with (class 5) copper conductors and a galvanised steelwire braid (GSWB) for mechanical protection. The cable is typically manufactured with PVC insulation, bedding and a transparent PVC sheath,The transparent sheath means signs of deterioration, damage or corrosion can be detected with ease.control cable has a voltage rating of 300/500V and meets the requirements of both BS6500 and VDE0250 standards.


    Application:


    Control cable are suitable for the wiring of electric controlling equipments and instrument, monitoring and controlling return circuit ,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750 AC.


    NameSection Area(m㎡)No. of CoreApplication Site
    Copper Conductor, PVC Insulated and Sheathed Control Cable0.75,1.0,1.5,2.51-16Permanent installation indoors, in cable ditches or pipes
    4,62-14
    102-10
    Copper Conductor, PVC Insulated and Sheathed ,Braiding Shielded Control Cable0.75,1.0,1.5,2.52-61Permanent installation indoors, in cable ditches or pipes where shielding is required
    4,62-14
    102-10
    Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable0.75,1.0,1.5,2.54-10Permanent installation indoors, in cable ditches or pipes where shielding is required
    4,67-61
    104-10
    Copper Conductor, PVC Insulated and Sheathed, Steel tape Armoured Control Cable0.75,1.0,1.5,2.57-16Permanent installation indoors, in cable ditches, Be able to withstand stronger external mechanical force
    4,64-14
    104-14
    Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable0.5-2.54-61Installation indoors where flexibility and movability are required
    Copper Conductor, PVC Insulated and Sheathed ,Braiding Shielded Flexible Control Cable0.5,0.75,1.04-61Installation indoors where flexibility shielding and movability are required
    1.5,2.54-48
    Copper Conductor, XLPE Insulated and PVC Sheathed Control Cable0.75,1.0,1.5,2.52-16Permanent installation indoors, in cable ditches or pipes
    4,62-14
    102-10
    Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Control Cable0.75,1.0,1.5,2.52-61Permanent installation indoors, in cable ditches or pipes where shielding is required
    4,62-14
    102-10
    Copper Conductor, XLPE Insulated, Steel-tape Armoured, PVC Sheathed Control Cable0.75,1.0,1.5,2.57-61Permanent installation indoors, in cable ditches, pipes or underground. Be able to withstand stronger external mechanical force
    4,64-14
    104-10
    Copper Conductor, XLPE Insulated, Copper tape Screened, PVC Sheathed Control Cable0.75,1.0,1.5,2.57-61Permanent installation indoors, in cable ditches or pipes where shielding is required
    4,64-14
    104-10
    Copper Conductor, XLPE Insulated, PVC Sheathed Flexible Control Cable0.5-2.54-61Installation indoors where flexibility and movability are required
    Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Flexible Control Cable0.5,0.75,1.04-61Installation indoors where flexibility shielding and movability are required
    1.5,2.54-48
