    UV Protection Insulated Electrical Wire With ASTM IEC DIN BS Standard

    Ask Lasest Price
    Brand Name : SUNWIN
    Model Number : PVC Insulated Power Cable
    Supply Ability : 10000 Meter/Meters per Day
    Price : $1.00 - $100.00 / Miles
    Certification : ASTM IEC DIN BS Standard
    • Product Details
    • Company Profile

    UV Protection Insulated Electrical Wire With ASTM IEC DIN BS Standard

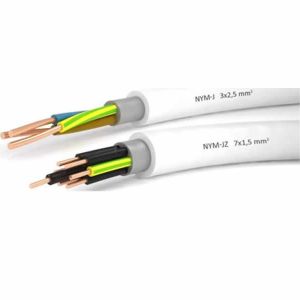

    NYM,NYM-J,NYM-O,300/500V PVC Insulation PVC sheath Power Cable

    NYM,NYM-J,NYM-O (300/500V PVC Insulation PVC sheath Power Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

    Kabel NYM Application:
    House wiring cable. Installation cable. wiring cable for installation in dry and wet rooms under, in and above plaster, also for installation outdoors but with UV protection.
    NYM Kabel Construction:

    Conductors:Conductor material Cu, bare.class1 or class2 acc to VDE0295(IEC60228/HD 383) Solid or stranded
    Green and Yellow available please see table below.
    Core colours:1 core: Green / Yellow
    3 core: Green/Yellow, Blue, Brown
    4 core: Green/Yellow, Brown, Black and Grey
    5 Core: Green/Yellow, Blue, Brown, Black and Grey
    7 core: Numbered
    Insulation:PVC
    Sheath/Jacket:PVC
    Colour:-O: without yellow/green core ; -J: with yellow/green core
    Voltage:Nominal voltage U0 300 V, Nominal voltage U 500 V
    Max. conductor temperature:70 °C
    Operating temperature:Flexible: -5°C to +70 °C, Fixed: - 40°C to +70 °C
    Minimum bending radius:1 core: 15 x diameter
    3 core and above: 4 x overall diameter
    Max short circuit temp:160 °C


    Nym-j cable and Nym-o Specification Sheet:

    Construction
    No. x mm2
    Outer Diameter
    cca. mm
    Cu Weight
    kg / km
    Cable weight
    cca. kg / km
    1 x 1.55,114,440
    1 x 2.55,72465
    1 x 46,33880
    1 x 66,858105
    1 x 10896155
    1 x 169,1154230
    2 x 1.58,829115
    2 x 2.51048145
    3 x 1.58,543120
    3 x 2.59,972165
    3 x 410,8115265
    3 x 612,2173315
    4 x 1.59,358145
    4 x 2.510,796205
    4 x 412,8154305
    4 x 613,8230385
    4 x 1016,8384605
    4 x 1619,26141025
    4 x 25249601580
    4 x 352613442075
    5 x 1.510,272170
    5 x 2.511,7120245
    5 x 413,9192370
    5 x 615,1288460
    5 x 1018,3480740
    5 x 1623,6681275
    5 x 2528,512001945


    300/500V PVC Insulation PVC sheath Power Cable,NYM,NYM-J,NYM-O specifications(data sheet,table,full form)
