SY0429 Grease And Synthetic Rubber Compatibility Tester Standard
RS232 Data Output Function LCD Display

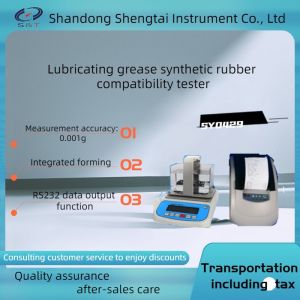

SY0429 Grease and synthetic rubber compatibility test instrument
used to measure the compatibility with standard synthetic rubber,
grease conforms to SHT 0429-2007 and liquid lubricant grease and
rubber compatibility test, will have a regulation the size of the
standard synthetic rubber specimens of the sample under a certain
temperature grease, after 70 h test, changes with the size and
hardness to grease the compatibility with standard synthetic
rubber.
Functional features and devices:
· Gold-plated ceramic capacitance sensor;
· Standard RS232 data output function allows easy connection
between computer and printer.
· Automatic zero tracking, buzzer alarm and overload alarm
functions
· Adopt a transparent measuring water tank with integral forming,
and the size of the integral forming water tank is (165*115*856)mm
· Dimensions: 270*270*270; Weight;6.5 KG
· Blue backlit LCD display;
· It can automatically display the quality of samples in air and
water
Technical parameters:
· Maximum measurement range of weight: 120g
· Measurement accuracy: 0.001g
· Measurement time is about 10 seconds
· Standard interface: RS-232
·the standard: The printer
· Nitrile rubber test sheet: 50×25×2mm
·Overall dimension, 270 * 270 * 270; Weight; 7KG
| Maximum measurement range of weight | 120g |
| Measurement accuracy | 0.001g |
| Measurement time | 10 seconds |
| Nitrile rubber test sheet | 50×25×2mm |
| Overall dimension, 270 * 270 * 270; Weight; 7KG |
Packing list
| S/N. | Name | Unit | Quantity | Remarks |
| 1 | A short hardness tester | Set | 1 | selection |
| 2 | Host | Set | 1 | Optional with printer and data cable |
| 3 | Drying oven | Set | 1 | selection |
| 4 | Electronic balance | Set | 1 | selection |
| 5 | Rubber test piece | slice | 14 | |
| 6 | specification | copy | 1 | |
| 7 | Warranty card | copy | 1 | |
