    Galvanized Steel Rain Downspout Pipe Roll Forming Machine Hydraulic Cutting System

    Ask Lasest Price
    Brand Name : CANGZHOU FMS
    Model Number : Downspout Roll Forming Machine
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 35 Sets Per Month
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

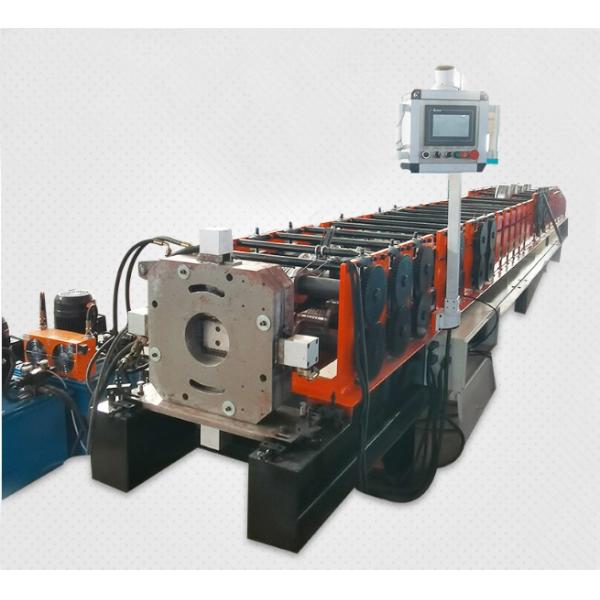

    Galvanized Steel Rain Downspout Pipe Roll Forming Machine Hydraulic Cutting System

    Galvanized Steel Rain Downspout Pipe Making Machine Manufacture Hydraulic Cutting System


    The downpipe forming equipment is one of the high-end equipment of our company. The whole production line realizes high automation, high efficiency, labor saving, and produces the best quality products with the fastest speed. Strive for the greatest benefit for customers.

    PLC Control System
    Control The Quantity And Cutting Length Automatically Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.


    Specification


    Galvanized Steel Rain Downspout Pipe Making Machine Manufacture Hydraulic Cutting System
    Body Frame madeH450 type steel by welding
    Material thickness0.3-0.8mm
    Frame designAccording to customer requested
    Main motor power4 kw
    Rollers manufactured45# Steel
    Shafts DiameterΦ70mm
    Main motor power7.5KW
    forming speed5-8m/min
    Power3kw
    Cutting tool materialCr12MoV,
    Electric Standard380V /50Hz/3PH or as per customer's requirements
    Body Frame madefrom H450 type steel by welding

    Installation


    During the installation and debugging of the device, our engineers should provide the buyer's personal request to provide training and maintenance of the equipment. Including basic buildings, electrical engineering, hydraulic oil, safety operations and non -standard safety items, test materials, etc.


    Guarantee

    The warranty will be maintained and during the delivery period during the delivery period. Due to the quality of the equipment during the guarantee period, we will provide parts for free, which is the correct operating condition. (Natural disasters or factors that humans cannot force are excluded).


    Payment terms


    40% in advance, 60% is paid before shipping after pass the inspection
