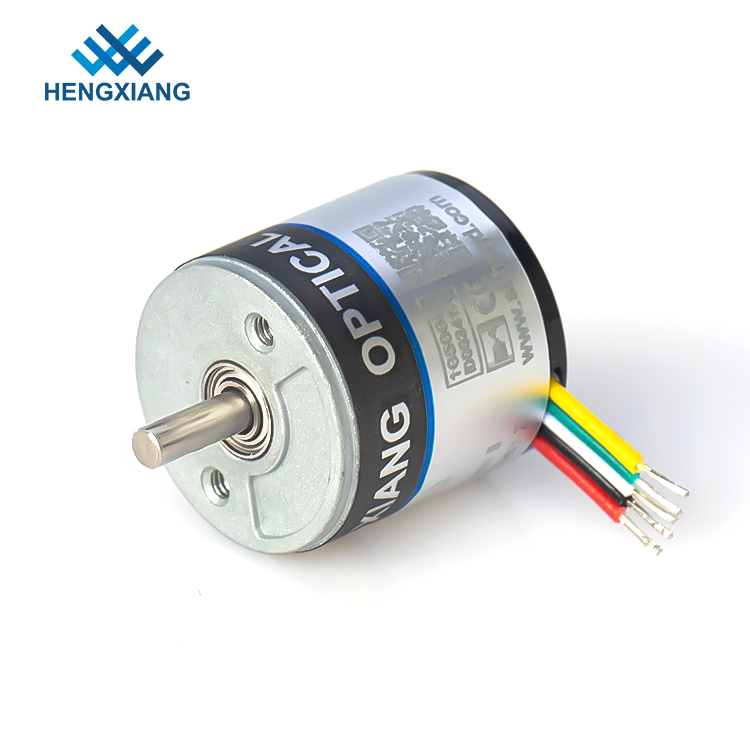

DC24V 1600 Ppr Optical Rotary Encoders Aluminium Alloy Shelled

​Best price Incremental Optical Rotary Encoder S18 DC5-24V up to 1600ppr

Prodution Paramenters

Principle of encoder
An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.
Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.
Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.

With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.

Production date
1. for 1-10 samples: 3-5 working days
2. for 20-50 mass production: 7-10 working days
3. for over 100pcs, production will be discussed with customers and ship on time

Payment terms:
1. T/T, western union, credit card, Paypal, etc
2. 3-5 working days after payment received
3. Encoders will be shipped once ready

Shipment
Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
You could select the express according to your requirements if freight collector
If you do not have any courier account, we will check and find a cheapest and safety express for you.
Our factory has 30% discount with most courier company, so price could be as cheap as possible.

More information
If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.

Shanghai Hengxiang Optical Electronics Co., Ltd. is a high-tech enterprise, specializing in the creation, research, production, and marketing of high-precision optical encoders.

We have a mature independent research and development capability, which enables to customize the production of exclusive models based on the needs of new development technology products.

We founded in 2001 and exported products to domestic and overseas after 21 years of sedimentation.

We mainly engaged in the encoder, optical lens, germanium products, etc. The strict control of product quality and high precision and high standard of deep processing technology serve the elevator, motor, CNC, textile, robot, wind power, medical, assembly line equipment, and other automation technology industries.
