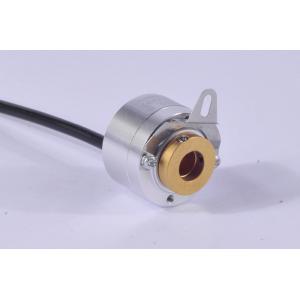

Hollow shaft incremental encoders K22 blind hole 4mm outer
dimension 22mm for small instrument
Few model number for K22
K22-J1N1660B4
K22-L2F1024B5
K22-L3PH1000B6
K22-L4C800B6.5
K22-J6E720B6.5
K22-J6C512B4
K22-J4E500B5
K22-J3NH400B6
K22-L2F360B6.5
K22-L1V256B6
K22-J3F250B4
Product Basis information of K22 series rotary encoder
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 22mm |
| Thickness | 18mm |
| Installation dimension | R12mm, spring plate 22T24 |
| Hollow shaft type | blind hole |
| Hollow shaft diameter | 4mm;5mm,6mm,6.5mm |
| Resolution | 250;256;360;400;500;512；720；800；1000;1024；1440;1600 |
| Output phase | Phase A,B,Z |
| Supply voltage | DC5V ; DC8-30V |
| Outlet type | Cable out from side |
| Cable out from back |
| Output mode | Collector open circuit output(NPN &PNP) |
| TTL(DC5V) |
| HTL(DC8-30V) |
| Protection grade | IP50 |
| Cable length | 500mm |
| Consumption current | 100mA MAX |
| Top response frequency | 300KHZ |
| Rise/ Fall time | 1usec Max( 1000mm cable) |
| starting torque | less than 5x 10-4 N.m |
| Intertia moment | less than 1x 10-6kg.m2 |
| Shaft load | Radial 2N; Axial 2N |
| Top REV | 5000r rpm |
