Membrane For ASCO Pulse Valve SCG353A043 SCG353A044 G353A041
G353A042
Introduction:

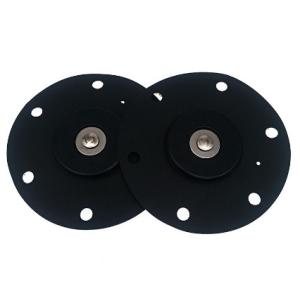

C113443, C113444, C113-443, C113-444 Diaphragm (Membrane) for ASCO
pulse valve SCG353A043, SCG353A044, G353A041, G353A042; TPE, NBR,
are all available; Pulse valves are the "switch" for compressed air
in the dust clean blowing system of the pulse bag filter. It is
used to control the release of air pulses in the cleaning cycle.
When the dust collector control board starts the cleaning cycle, it
sends an electrical signal to the solenoid valve, and then
activates the pulse valve. Inside the pulse valve, the rubber
diaphragm opens and closes to release the compressed air stored in
the air header. At this time, the air enters the blowing pipe above
the filter through the valve, and then enters the filter down to
clean the filter bag.
Model:
Valve Diaphragms Features:
Fabrication technics of textile makes the product tear resistance
stronger
High quality raw materials ensure the excellent performance of the
material itself
| Product Materials | NBR,NR |
| Operating Temperature | -20℃~80℃ |
| Service Life | ≥1000000 times |
| Usage Scenario | Bag filter devices /precipitator equipment |
Skills requirement:
Since the electromagnetic pulse valve diaphragm is a flexible
mechanism that needs to be opened and closed frequently to control
air circulation, it requires not only good flexibility, but also
the highest possible sealing performance, so the material of the
pulse valve diaphragm is It is directly related to the service life
and use effect of the pulse valve diaphragm. In other words, the
quality of the pulse valve diaphragm directly affects the working
stability of the pulse bag filter dust cleaning system, and is also
directly related to the use cost of the dust removal equipment.
Generally All pulse valve diaphragms have a promise of service life
or the number of actions, and the pulse valve diaphragm used can
directly reduce the use cost of dust removal equipment.
Application:
Referred to the dust collector, it applies to waste gas dust
filtering of Cement plant, Steel mill, Power station, Electrolytic
aluminium factory, Incineration plant, crushing mixing conveying of
Chemical plant, crushing mixing sieving grinding of
Pharmaceutical plant, raw material mixing packing of Paper mill,
bagging mixing of Dyeing mill, crushing gagging conveying and
mixing of Fertilizer plant, crushing plasticzation conveying of
Kilns, sawing polishing filing of Log mill, etc.
Our service:
1. Packaging is neutral packing or customized packing.
2. We will reply you within 24 hours.
3. We will also provide you with good after-sales service.
4. OEM or ODM orders are welcomed.
5. Trial orders are acceptable.
6. High quality and factory price.
7. 100% ensured the quality.
