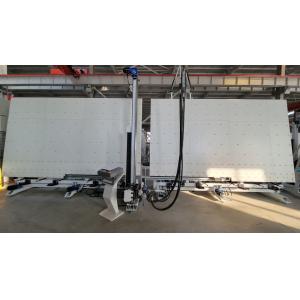

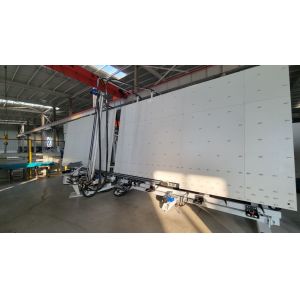

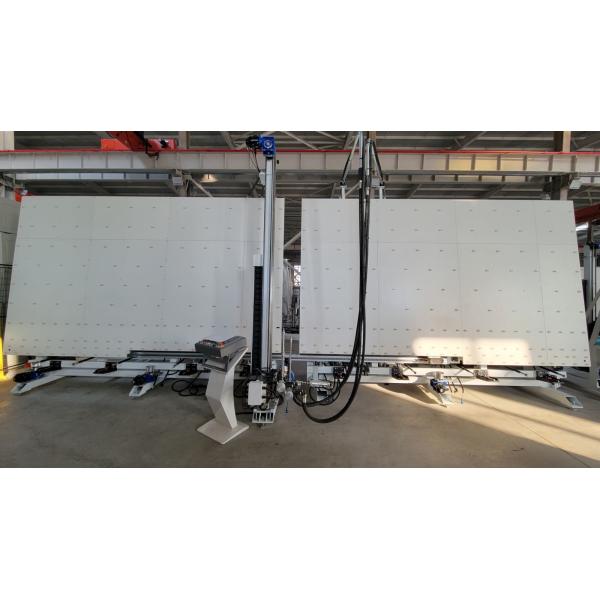

Automatic Insulating Glass Sealing Machine Insulating Glass Sealing
Robot
The feature of automatic insulating glass sealing robot
1. The hollow glass sealing machine is suitable for glass deep
processing enterprises, with a high degree of automation, which can
reduce labor intensity, save manpower, and improve production
efficiency
2. The insulating glass sealing line adopts a man-machine touch
screen interface and has a memory function.
3. After the sealant is applied, the corners of the glass are full
without bubbles, and the surface is flat, without chamfering
4. Two sets of independent sealant supply systems (including
stirring device) are adopted, the two sealants can be quickly
switched, and one-button operation is easy (Type II)
5. The width of the machine is 1.5m, which occupies a small area
and saves space
6. Glass can be pre-stored in the third section to effectively
improve efficiency
7. The smallest size of insulating glass that can be processed is
400*300mm
8. The mixer is equipped with an anti-blocking device
9. The servo control system adopts the world famous brand (YASKAWA,
Japan), with stable performance
10. Shaft transmission ensures smooth glass delivery and accurate
positioning.
11. The special V-shaped transmission belt prevents the sealant
from sticking to the belt, ensures that the edge of the glass is
clean, and the V-shaped seat is changeable.
12. Spare parts are produced with high standardization and high
precision to ensure
The machine can be used stably for a long time
13. Suitable for triple glazing.
14. The conveying wheel on the back panel adopts embedded wheels to
ensure the glass is transported smoothly
Details of automatic insulating glass sealing machine
Dyad Body Device
The dyad body device has two functions. The left one is used for
filtering impurities and moisture
when filling gas into , then the right one plays the role of
lubrication.
Two Suckers Device
Adopting two suckers for preventing to move glass during sealing.
The Device of Sealing Part
Adopt Japan YASKAWA servo motor to control the sealing part with
360°rotating. Setting
scraper blade to scrape out extra glue and no need to repair glass corners by second
time.
Parameters of automatic hollow glass sealing machine
| Max.glass size | 2500mm |
| Min.glass size | 170mm*400mm (2000mm machine) |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
Main components list
| Name | Brand |
| Switch | SIEMENS |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Siemens |
| CPU | Japan YASKAWA |
| Frequency converter | Japan OMRON |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| PLC | Siemens |
| Guideway | Siemens |
