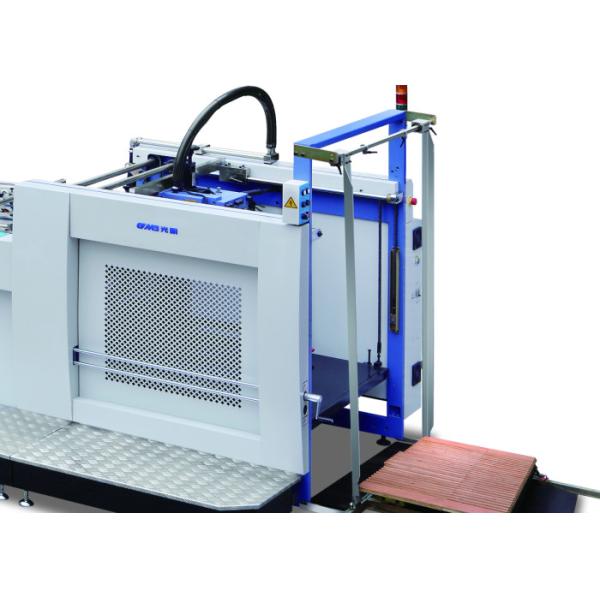

26Kw Industrial Laminating Equipment , Digital Lamination Machine SW - 1050G

Max 120m / min high speed Automatic Lamination Machine model SW-1050G for big process capacity

SW-1050G is used to laminate pre-coated film and printed matters. The machine adopts automatic feeding, automatic slitting after lamination, and has stable, high-effective features. Schneider, Omron famous electrical components are used in the machine to ensure the stability and safe. The machine is automatic, feeder is automatic feeding, heat transfer oil is used for heating roller to keep the precision of laminating temperature. PLC control system is also used in this machine. It has the advantages of high precise feeding, stable working, long service lift and convenient maintenance. It is suitable to laminate those products like cards, certificates, files, book covers, and packaging boxes etc.

Applications

It suits one side for pre-glued film. It is widely used for magazines,paper,books,

and packs for food, medicine, cosmetics and so on.

This machine centralizes the features of high automation, high precision of lamination, humanized configuration and easy operation, and is the best choice with high cost performance for large and medium-size enterprises.

Technical Parameters

Configuration

1. Automatic paper feeder adopts oil-free vacuum pump and pre-stacker to feed paper automatically. Paper can be added meanwhile the machine is working, which improves working efficiency

2. Man-machine interface system: color touch screen simplifies the machine operation. On the touch screen, as long as the operator inputs paper size, overlap length and working speed etc., the machine can realize completely automated operation. And on touch screen, working status of the machine can be checked at any time.

3. Automatic feeding system is equipped with no sheet protector, paper break protector and paper superposing protector, which are controlled by photoelectric and mechanical systems. When paper is miss or break, the machine stop automatically for self-protection.

4. Feeder vacuum table is furnished with air aspirator and front lay etc. to regulate paper conveying and overlap and improve lamination prevision.

5. 320mm diameter with high-precision chrome plated heating roller is equipped with electromagnetic heater oil heating, which is safe fast pre-heating energy saving and environmental protection. The laminating temperature is adjustable upon applications.

6. Hydraulic pressuring system provides automatically big and steady pressure to guarantee good laminating quality.

7. Air shaft releases film, and perfects the precision of film release, and also makes the loading and unloading of film roll much more convenient. The combination of air expansion shaft and braking device can adjust film release tension and release speed.

8. Space between separation section and laminator section, which makes the machine maintenance more easier

9. Pneumatic separation system realizes automatic paper cut as long as the operator inputs the size of workable paper on the touch screen.

10. Corruagating belt makes the paper collection more regular and convient.

11. Delivery section is standard with stacker.

Wenzhou Guangming Printing Machinery Co.,Ltd. was established in 1985,locating at No.105 Si Ming Shan road,Wenzhou economic technology and development zone,Zhejiang Province,China.

We have more than 30 years of experience manufacturing post-print equipment.The first thermal laminating machine of China was designed and made in Guangming in 1986.The first water base laminating machine was designed and made in Guangming in 1996.The first multiple function laminating machine was designed and made in Guangming in 2003.The first high speed 120m/min thermal film laminating machine of China was designed and made in Guangming in 2012.

Our machines covering packaging laminating machines,commercial laminating machines and on demand laminating machines,have been sold to clients of more than 120 countries and regions,such as US,Canada,Netherlands,Spain,Germany,Japan,Russia and Iran etc.,receiving good feedback from them.

Our machines have already passed ISO9001:2008 quality management system and CE certificate. Our high quality Guangming laminating machines,reasonable price and perfect after sale service have gained the trust from the users home and abroad.Welcome to be our sales agents in your country and region.

Until now,we are the most professional and largest manufacturer in China,even all over the world.

Looking forward to hearing from you for inquiry and cooperation.
