Auto feeder fully automatic Digital Lamination Machine with Auto
stacker
Features of this machine.
A. Automatic paper feeder adopts oil-free vacuum pump to feed paper
automatically.
B. Automatic paper feeding system is equipped with no paper
protector and paper break protector, which are controlled by
sensor.
C. Man-machine interface system, color touch screen simplify the
machine operation. On the touch screen, as long as the operator
inputs paper size, overlap length and working speed etc., the
machine can realize completely automated operation. And on touch
screen, working status of the machine can be checked at any time.
D. Heating roller and lower heating roller adopt aluminum-casting
heater. Temperature is respectively controlled to ensure the
precise temperature for the double-sided lamination.
E. Pneumatic pressuring system provides stable laminating pressure.
The pressure can be adjusted upon requests.
F. Air tension shaft: convenient for film to install and dismantle,
and accurate for film setting.
G. Clutch tension control system is equipped.
H. Slitting knife is used to cut the film to meet paper width.
I. Punch knife is used to make holes on film edge to achieve
slitting automatically.
J. Anti-curve device: laminated paper will not be curved after
slitting.
K. The laminated paper can be automatically slit by pneumatic
slitting system.
L. The slit paper is automatically collected on delivery table.

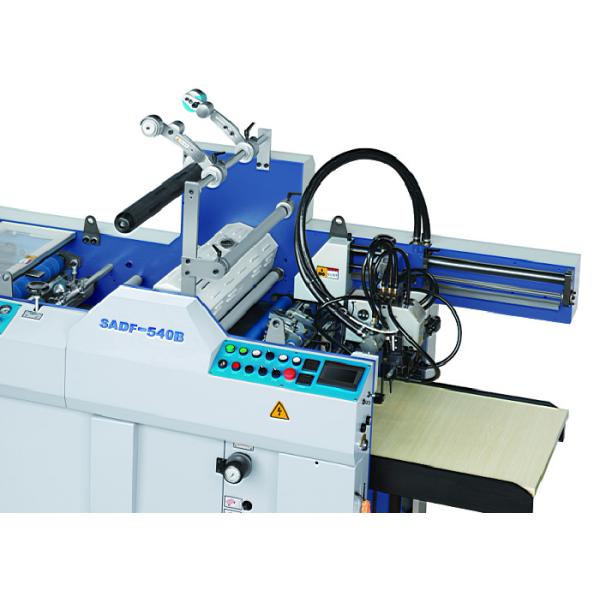

SADF - 540B Fully automatic double side laminating machine is one
of our fully automatic double side laminators newly developed upon
market needs. It is a processing technology which targets in
laminating small size paper with pre-glued film after
heated,pressured finally realize the paper and film laminated
together .The most attractive features of the machine are compact
structure and humanized design. SCHNEIDER, OMRON etc international
brands of electrical and photovoltaic parts equipped perfect the
running stability and safety of the laminator. The machine realizes
automated operation, and suits pre-glued film single side and
double side paper lamination.
Technical Parameters
| Model | SADF540B |
| Max Paper Size | 540*780mm |
| Min Paper Size | 290*440mm |
| Laminating Speed | 0-30m/min(single side) 0-25m/min(double side) |
| Paper Thickness | 100-500gsm |
| Gross Power | 18kw |
| Overall Dimensions | 3200*1250*1500mm |
| Weight | 1800kg |
Tips to place order on us.
Step one,to confirm the suitable models with our sales,such as max
paper size,paper thickness,process capacity,film types and etc..
Step two,to confirm the price,price terms,delivery time,destination
port and etc..
Step three,sign the proforma invoice and make 30% deposit to
produce the machine.
Step four,when the machine is ready to deliver,make the 70% balance
payment to deliver the machine.
Step five,to confirm shipment by sea,by train or by air,then decide
to ship in one full container or LCL.After loading,confirm bill of
lading and other documents such as invoice,packing list and etc..
Step six,when the machine arrive your side,install the machine
yourself with our technical support or ask our technician to
install the machine(only for fully automatic machine),the buyer
need to arrange the route tickets,accommodation,transportation and
etc..
