SAE4140, 1.7225, SCM440 Hot Rolled Steel Plate of Special Tool
Steel
Perform Standard: GB/T 3077-1999
| C | Si | Mn | Cr | Mo | P | S | Ni |
| 0.38~0.45 | 0.17~0.37 | 0.60~0.90 | 0.90~1.20 | 0.15-0.25 | ≤0.018 | ≤0.030 | ≤0.012 |
1, Application
It used for section large forgings, such as locomotive traction
gears, with supercharger drive gear, the rear axle, the connecting
rod and the spring load greatly clip,oil drill pipe joints and
fishing tools,etc.
2, Feature
1) Weldability suffers with increasing chromium content;
2) High temperature strength and high pressure hydrogenation
properties are promoted by chromium and molybdenum;
3) Molybdenum significantly reduces temper brittleness;
4) Chromium renders steel oil hardenable and increase
hardenability;
5) Chromium molybdenum high tensile steel with yield strength of
550N/mm2;
3.Mechanical Properties:
Tensile strength:σb (MPa):≥1080(110)
Yield strength:σs (MPa):≥930(95)
Elongation:δ5 (%):≥12
Section shrinkage:ψ (%):≥45
Impact work:Akv (J):≥63
Impact toughness value:αkv (J/cm²):≥78(8)
4.Ready Stock:
Round Bar diameter 14-450mm.All the sizes as require can be customerized as fresh production
with MOQ.
5.Delivery state:
Hot rolled, Heat Treatment,black, hardness or tempered hardness:28-34 HRC.
Annealing:HBS<=235.
6, Delivery time
For abundant stock, 15-20 days.For customized products, 30-50 days.
We have full set of equipement (sawing machine/grinding/polishing
machine) to make customer's specification.
7,Available size(mm)
| Grade | Size(mm) |
| SCM440 Plate | Thickness | Width | Length |
| 20-280 | 2200 | 5800 |
| SCM440 Round Bar | Diameter | Length |
| 16-450 | 3000-6000 |
Listed specifications are only typical grades; products of required
specifications can be developed/produced per international, Chinese
or industry standards, or based on agreements with customers.
Our advantages
Competitive price.
Full of export experience.
Quick delivery:The company promise to provide a just-in-time
delivery
QC :100% inspection.
Our Services
1. We are the professional supplier of special mould steel.
2. Stock always kept for small scale emergency demand.
3. Small or big order can be delivered on time per customer's
requirement.

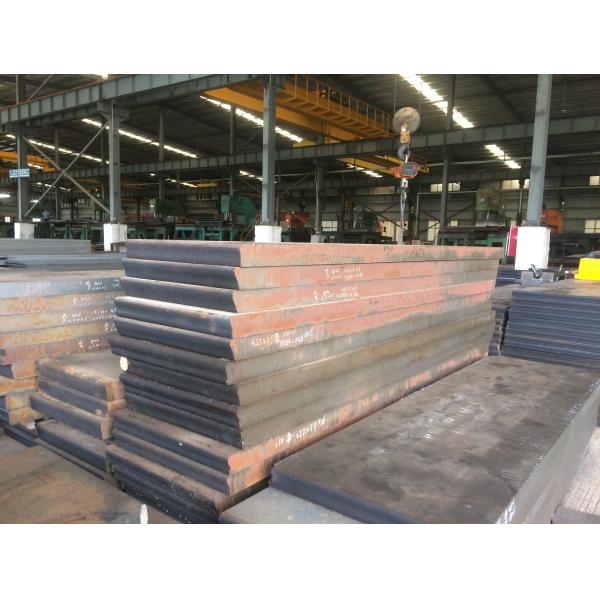

Product Show
