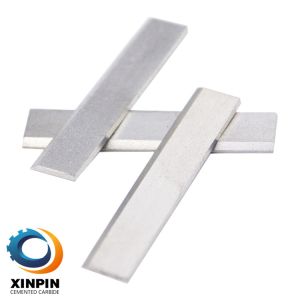

Tungsten Carbide Strips
Material: 100% fresh raw material : WC. CO, TIC, TAC
GRADE: Universal,Professional
Size: standard size &customized size available
Surface treatment: sandblasting,Mirror-polishing
Application: softwood, hardwood, chipboard, HDF&MDF, Plywood,
laminated, non-ferrous etc
Processing type: planer
Machine type:planer
Sample: <0.5kg, standard size available.
Tungsten Carbide Strips for woodworking,metal working knives
Xinpin offers universal and professional grades of high performance
Tungsten Carbide Strips to meet market varied demand in wood
(softwood, hardwood, chipboard, HDF&MDF, etc)working, and
non-ferrous (aluminum,copper,steel)cutting.
Features of our TCT Strips
- High stability,no bending thanks to 100% fresh raw material
- Ideal balance between wear and impact resistance, sharp and
wearable,no broken
- Big range of sizes and grades, free mould for customized
dimension
- Manufactory price and ISO certified quality
- Smooth surface, easy to welding
Thank for our experienced engineers team with 20 years working
experienced in the metallurgical industry, they constanlty develop
and refine our portfolio of carbide grades to ensure the right
choice for all kinds of materials and machining conditions. And
each kind of material has its very own specific propertied, we
offer a wide variety of grades in the all cutting field. We are
happy to help you select the best grade for you depening on your
application, to make you enjoy a smoothly cutting work. And the
table below will guide you in finding the right grade for your
application.
GRADE PROPERTIES FOR SAW TIPS
| Grade | ISO CODE | Grain Size | Binder | Density(g/Cm3) | Hardness(HRA) | Transverse Rupture Strength(N/mm2) |
| Professional | XF6 | K10 | Fine | 6 | 14.7-14.9 | 92.0-92.8 | ≥2600 |
| XF8 | K20 | Fine | 8 | 14.5-14.7 | 91.0-92.0 | ≥2800 |
| XF10 | K30 | Fine | 10 | 14.3-14.5 | 90.5-91.5 | ≥3000 |
| Universal | XK10 | K10 | Medium | 6 | 14.8-15.0 | 90.5-91.0 | ≥2400 |
| XK20 | K20 | Medium | 8 | 14.6-14.8 | 89.5-90.5 | ≥2600 |
Standard dimension list are avaliable and customized dimension is
also welcomed.
Length (+/-2.0mm--5.0mm) |
Width(+/- 0.2mm--0.3mm) |
Thickness(+/-0.1) |
150/310/320/ 330 |
6.0---40.0 |
2.0---6.0
|
Drawing for our TCT Strips
We at XINPIN assure that your orders will receive individual
attention, whether it is big or small, we welcome your testing.
