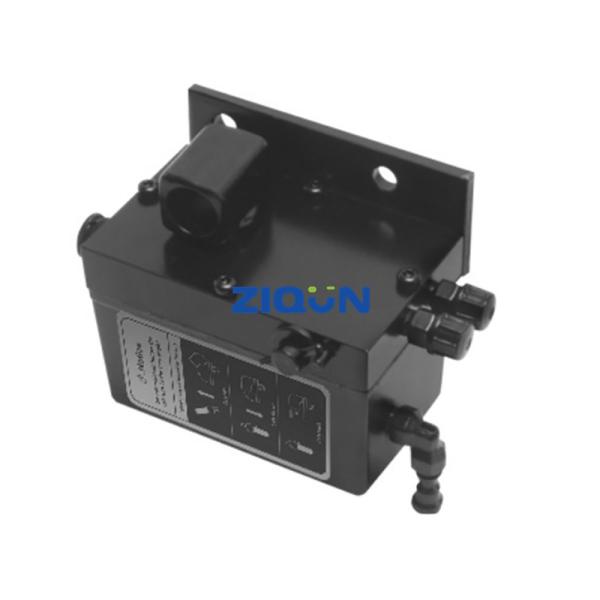

Automotive Hand Oil Hydraulic 1908460 IVECO Cabin Tilt Pump

    Buy cheap Automotive Hand Oil Hydraulic 1908460 IVECO Cabin Tilt Pump from wholesalers

    Buy cheap Automotive Hand Oil Hydraulic 1908460 IVECO Cabin Tilt Pump from wholesalers
    • Buy cheap Automotive Hand Oil Hydraulic 1908460 IVECO Cabin Tilt Pump from wholesalers
    • Buy cheap Automotive Hand Oil Hydraulic 1908460 IVECO Cabin Tilt Pump from wholesalers

    Automotive Hand Oil Hydraulic 1908460 IVECO Cabin Tilt Pump

    Ask Lasest Price
    Brand Name : ZIQUN
    Model Number : 1908460
    Certification : ISO90001
    Price : Negotiable
    Payment Terms : Western Union, MoneyGram, T/T, D/P, D/A, L/C
    Supply Ability : 10Pcs/14Days
    Delivery Time : 7-14Work days
    • Product Details
    • Company Profile

    Automotive Hand Oil Hydraulic 1908460 IVECO Cabin Tilt Pump

    Automotive Hand Oil Hydraulic 1908460 IVECO Cabin Tilt Pump


    High Quality Automotive Truck Body Parts for hand Oil Hydraulic Cabin Tilt Pump Cab Tilting Pump 1908460 For IVECO


    High Quality Automotive Truck Body Parts for Iveco Hydraulic Cabin Pump 1908460

    High Quality Automotive Truck Body Parts for Iveco Hydraulic Cabin Pump 1908460 01908460 7.77024


    Composition of hydraulic pump

    The hydraulic pump is composed of three parts: coupling, hydraulic oil tank and oil filter.


    1. Coupling:

    The drive shaft of the hydraulic pump cannot bear the radial force and the axial force. Therefore, it is not allowed to directly install the belt pulley, gear, and sprocket on the shaft end. The drive shaft and the pump drive shaft are usually connected with a coupling. If due to manufacturing reasons, the coaxiality of the pump and the coupling exceeds the standard, and there is a deviation during assembly, the centrifugal force will increase the deformation of the coupling as the speed of the pump increases, and the large deformation will increase the centrifugal force. Causes a vicious circle, which results in vibration and noise, which affects the service life of the pump. In addition, there are other influencing factors such as loose coupling pins that are not tightened in time, and rubber ring wear is not replaced in time.

    2. Hydraulic oil tank:

    The main function of the hydraulic oil tank in the hydraulic system is to store oil, dissipate heat, separate the air contained in the oil and eliminate bubbles. The capacity of the fuel tank must be considered first. Generally, mobile equipment takes 2 to 3 times the maximum flow rate of the pump, and fixed equipment takes 3 to 4 times. Second, consider the oil level of the fuel tank. When all the hydraulic cylinders of the system are extended, the oil level of the fuel tank should not be low At the lowest oil level, the oil level shall not be higher than the highest oil level when the oil cylinder is retracted; finally, considering the structure of the oil tank, the partition in the traditional oil tank cannot play the role of depositing dirt. A vertical partition should be installed along the longitudinal axis of the tank. There is a space between one end of the partition and the end plate of the oil tank to connect the spaces on both sides of the partition. The oil inlet and outlet of the hydraulic pump are arranged on both sides of the partition at the unconnected end, so that the distance between the oil inlet and the oil return is the farthest. The hydraulic oil tank has more heat dissipation effect.


    3. Oil filter:

    Generally, pollutants with a particle size of less than 10 μm have little effect on the pump, while those larger than 10 μm, especially above 40 μm, have a significant impact on the service life of the pump. The solid pollution particles in the hydraulic oil can easily aggravate the surface wear of the relatively moving parts in the pump. Therefore, it is necessary to install an oil filter to reduce the degree of oil pollution. Filtration accuracy requirements: 10-15μm for axial piston pump, 25μm for vane pump, 40μm for gear pump. The contamination and wear of the pump can be controlled within the allowable range. At present, high-precision oil filters are widely used, which can greatly extend the service life of hydraulic pumps.


    Product name

    Cab Tilting Pump

    Type

    Cab lift pump

    Truck parts

    Hydraulic Components

    Brand

    ZIQUN

    Origin

    GuangZhou , China

    Payment Method

    T/T

    Port

    Ningbo / Shanghai / Guangzhou/ Tianjin

    Packing

    Polybag/Natural box/Color box

    Color

    Original

    Size

    Standard Size

    Truck Model

    IVECO

    OE NO.

    190 8460 1908460

    Application

    for European truck

    Quality

    High-Quality

    Material

    Steel

    Certification

    ISO90001

    Weight

    Standard

    Shipping terms

    Fedex, DHL, EMS, TNT and so on


    Replaces

    Ref. No.


    Properties


    Data

    Iveco

    0190 8460

    01908460

    Contents [ml]


    310

    Iveco

    0485 4244

    04854244

    Height [mm]

    H

    86

    Iveco

    190 8460

    1908460

    Length [mm]

    L

    130

    Iveco

    4255 8828

    42558828

    Overflow pressure [bar]

    Pov

    370




    Pressure [bar]


    400




    Thread Measurement 1


    M12 x 1,5




    Thread Measurement 2


    M12 x 1,5










    Width [mm]

    W

    80

    Quality Automotive Hand Oil Hydraulic 1908460 IVECO Cabin Tilt Pump for sale
