1500mm Rubber O Rings

    Buy cheap 1500mm Rubber O Rings from wholesalers

    Buy cheap 1500mm Rubber O Rings from wholesalers
    • Buy cheap 1500mm Rubber O Rings from wholesalers
    • Buy cheap 1500mm Rubber O Rings from wholesalers

    1500mm Rubber O Rings

    Ask Lasest Price
    Brand Name : ZIQUN
    Model Number : Silicone rubber o ring
    Certification : ISO9001, ROHS
    Price : Negotiable
    Payment Terms : Western Union, MoneyGram, T/T, D/P, D/A, L/C
    Supply Ability : 10000Pcs/7Days
    Delivery Time : 15-40Work days
    • Product Details
    • Company Profile

    1500mm Rubber O Rings

    1500mm Rubber O Rings


    Heat Resistant Seal Oring FKM Silicone NBR Rubber Factory Direct Sealing O Rings Silicone O-Ring


    silicone o-ring for machinery car seals are one of the most common seals used in machine design,it can be used in static applications or in dynamic applications where there is relative motion between the parts and the O-ring.

    Dynamic examples include rotating pump shafts and hydraulic cylinder pistons.

    It has the advantages:

    1. inexpensive;

    2. Small installation space;

    3. easy to make,easy to install;

    4. stable performance;


    Rubber O-shaped sealing ring is suitable for installation on various mechanical equipment, and it can seal under the specified temperature, pressure, and different liquid and gas media under static or moving state. Various types of sealing components are widely used in sanitary ware, ships, automobiles, hardware, electronics, toys, electrical appliances, aerospace equipment, machinery, and various instruments and meters. Rubber O-rings are mainly used for static sealing and reciprocating sealing. When used for rotary motion sealing, it is limited to low-speed rotary sealing devices. Rubber O-rings are generally installed in a groove with a rectangular cross-section on the outer circle or the inner circle for sealing. The rubber O-rings still play a good sealing and shock absorption effect in environments such as oil, acid, alkali, abrasion, and chemical erosion. Therefore, the rubber O-ring is the most widely used seal in hydraulic and pneumatic transmission systems.


    • Aflas® or Kalrez®(FFKM)
    • Acrylate Rubber(ACM)
    • Butyl Rubber(IIR)
    • Ethylene-propylene (EPR, EPDM)
    • Ethylene Acrylate Rubber(AEM)
    • Fluorocarbon (FKM/FPM)
    • Fluorosilicone(FVMQ)
    • Hydrogenated Nitrile (HNBR)
    • Liquid Silicone Rubber(LSR)
    • Neoprene Rubber(CR)
    • Nitrile Rubber (Buna-N/NBR)
    • Natural Rubber(NR)
    • Polyurethane(PU)
    • Silicone Rubber
    • Styrene-butadiene Rubber (SBR)

    The relationship between rubber O-ring hardness/wire diameter/clearance tolerance/working pressure

    Wire diameter/clearance tolerance/pressure(kg/c㎡)SHOREAKg/C㎡Kg/C㎡Kg/C㎡Kg/C㎡Kg/C㎡Kg/C㎡Kg/C㎡
    1.78700.150.10
    800.200.150.100.050.03
    900.250.200.130.100.080.050.03
    2.62700.180.130.08
    800.250.180.130.080.04
    900.30.250.180.130.100.080.04
    3.53700.200.150.10
    800.300.200.150.100.05
    900.400.300.200.150.130.100.05
    5.33700.250.180.13
    800.350.250.180.130.06
    900.450.350.250.180.150.130.06
    6.99700.300.200.15
    800.400.300.200.150.07
    900.500.40.300.200.180.150.07

    FKM Silicone Washer D-ring X-ring X Rings

    ED Rings

    STANDARD & NON-STANDARD SIZE IN STOCK
    StandardSourceSection Cross Of O-Ring(mm)
    AS568U.S.A1.782.623.535.336.99
    BS1516U.K
    RFrance1.902.703.605.346.96
    JIS B 2401Japan1.902.403.103.505.70
    ISO3601/1International1.802.653.555.307.00
    DIN3771/1Germany
    GB3452.1China
    MetricNUOANKE0.501.001.502.002.50
    3.003.504.004.505.00
    5.506.006.507.008.00
    8.408.6010.0012.0015.00
    IDMin 0.3mm to Max 1500mm are all available, if the ID exceeds 1500mm, communication is required. Custom Big Rubber O Ring With Fast Deliver
    NoteIn addition to these standard sizes we have thousands of non-standard sizes for you to choose, if you need the complete catalouge, please contact us. Rubber NBR FKM Silicone Washer D-ring X-ring X Rings ED Rings

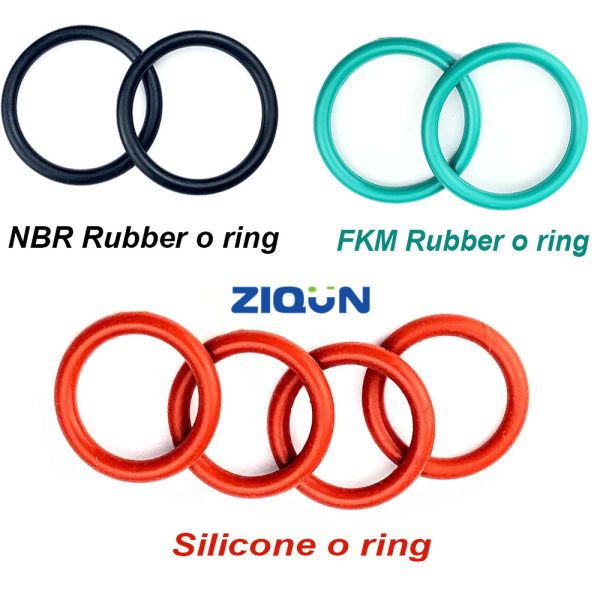

    Quality 1500mm Rubber O Rings for sale
