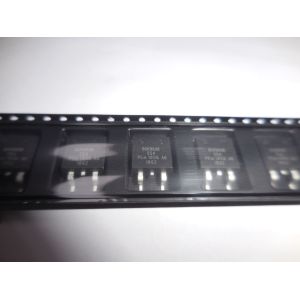

BUK9608-55 New And Original TO-263 Integrated Circuit

    Buy cheap BUK9608-55   New And Original  TO-263   Integrated Circuit from wholesalers

    Buy cheap BUK9608-55   New And Original  TO-263   Integrated Circuit from wholesalers
    • Buy cheap BUK9608-55   New And Original  TO-263   Integrated Circuit from wholesalers

    BUK9608-55 New And Original TO-263 Integrated Circuit

    Ask Lasest Price
    Brand Name : NEXPERIA
    Model Number : BUK9608-55
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 50000PCS
    Delivery Time : 3
    Price : Negotiate
    • Product Details
    • Company Profile

    BUK9608-55 New And Original TO-263 Integrated Circuit

    ISO9001.pdf

    Product Technical Specifications
    EU RoHSCompliant with Exemption
    ECCN (US)EAR99
    Part StatusObsolete
    HTS8541.29.00.95
    SVHCYes
    SVHC Exceeds ThresholdYes
    AutomotiveYes
    PPAPUnknown
    Product CategoryPower MOSFET
    ConfigurationSingle
    Channel ModeEnhancement
    Channel TypeN
    Number of Elements per Chip1
    Maximum Drain Source Voltage (V)55
    Maximum Gate Source Voltage (V)15
    Maximum Continuous Drain Current (A)125
    Maximum Drain Source Resistance (MOhm)7.5@10V
    Typical Gate Charge @ Vgs (nC)92@5V
    Typical Input Capacitance @ Vds (pF)4551@25V
    Maximum Power Dissipation (mW)253000
    Typical Fall Time (ns)167
    Typical Rise Time (ns)175
    Typical Turn-Off Delay Time (ns)280
    Typical Turn-On Delay Time (ns)40
    Minimum Operating Temperature (C)-55
    Maximum Operating Temperature (C)175
    PackagingTape and Reel
    MountingSurface Mount
    Package Height4.5(Max)
    Package Width9.4(Max)
    Package Length10.3(Max)
    PCB changed2
    TabTab
    Supplier PackageD2PAK
    Pin Count3
