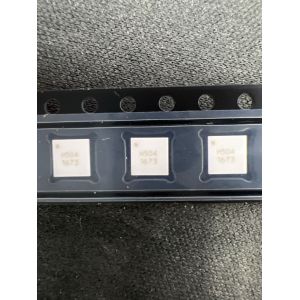

    HMC504LC4B New And Original QFN-24 Integrated Circuit

    Ask Lasest Price
    Brand Name :
    Model Number : HMC504LC4B
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 50000PCS
    Delivery Time : 3
    Price : Negotiate
    • Product Details
    • Company Profile

    HMC504LC4B New And Original QFN-24 Integrated Circuit

    ISO9001.pdf

    Product Technical Specifications
    EU RoHSCompliant
    ECCN (US)5A991h.
    Part StatusActive
    AutomotiveNo
    PPAPNo
    Manufacturer TypeLow Noise Amplifier
    Number of Channels per Chip1
    Maximum Operating Frequency (MHz)27000
    Typical Power Gain (dB)17@27000MHz
    Typical Output Power (dBm)17@27000MHz
    Typical Output Intercept Point (dBm)26@27000MHz
    Maximum Input Return Loss (dB)7(Typ)@27000MHz
    Maximum Output Return Loss (dB)9.5(Typ)@27000MHz
    Typical Noise Figure (dB)4.5@27000MHz
    Maximum Operating Supply Voltage (V)4.5
    Typical Single Supply Voltage (V)4
    Maximum Single Supply Voltage (V)4.5
    Maximum Supply Current (mA)90(Typ)@4V
    Power Supply TypeSingle
    Maximum Power Dissipation (mW)1900
    Minimum Operating Temperature (C)-55
    Maximum Operating Temperature (C)85
    PackagingTape and Reel
    MountingSurface Mount
    Package Height1.1
    Package Width3.9
    Package Length3.9
    PCB changed24
    Supplier PackageCLLCC EP
    Pin Count24

    Do your project specifications require a clear ro frequency? If so, look no further than the general purpose amplifier HMC504LC4B buffer amplifier from Analog Devices. Its maximum power dissipation is 1900 mW. This RF amplifier chip has a minimum operating temperature of -55 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a single channel per chip. This device uses a single power supply.
