Product Description
1. Features:
Up to 1.25Gb/s Data Links
Hot-Pluggable
Duplex LC connector
Up to 120km on 9/125μm SMF
1550nm DFB laser transmitter
Single +3.3V Power Supply
Monitoring Interface Compliant with SFF-8472
Maximum Power <1W
Industrial /Extended/ Commercialoperating temperaturerange: -40°C
to 85°C/-5°C to 85°C/-0°C to 70°C Version available
RoHS compliant and Lead Free
2. Applications:
Metro/Access Networks
1.25 Gb/s 1000Base-EZX Ethernet
1×Fibre Channel
Other Optical Links
3.Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: |
| Center Wavelength | λc | 1530 | 1550 | 1570 | nm | |
| Spectral Width | σ | | | 1 | nm | |
| Side Mode Suppression Ratio | SMSR | 30 | | | dB | |
| Optical Output Power | Pout | -3 | | +2 | dBm | 1 |
| Extinction Ratio | ER | 9 | | | dB | |
| Optical Rise/Fall Time | tr / tf | | | 260 | ps | 2 |
| Relative Intensity Noise | RIN | | | -120 | dB/Hz | |
| Output Eye Mask | Compliant with IEEE802.3 z (class 1 laser safety) | |
| Receiver Section: | |
| Optical Input Wavelength | λc | 1270 | | 1610 | nm | |
| Receiver Overload | Pol | -7 | | | dBm | 4 |
| RX Sensitivity | Sen | | | -32 | dBm | 4 |
| RX_LOS Assert | LOS A | -45 | | | dBm | |
| RX_LOS De-assert | LOS D | | | -33 | dBm | |
| RX_LOS Hysteresis | LOS H | 0.5 | | | dB | |
| General Specifications: |
| Data Rate | BR | | 1.25 | | Gb/s | |
| Bit Error Rate | BER | | | 10-12 | | |
| Max. Supported Link Length on 9/125μm SMF@1.25Gb/s | LMAX | | 120 | | km | |
| Total System Budget | LB | 32 | | | dB | |
4.Description:

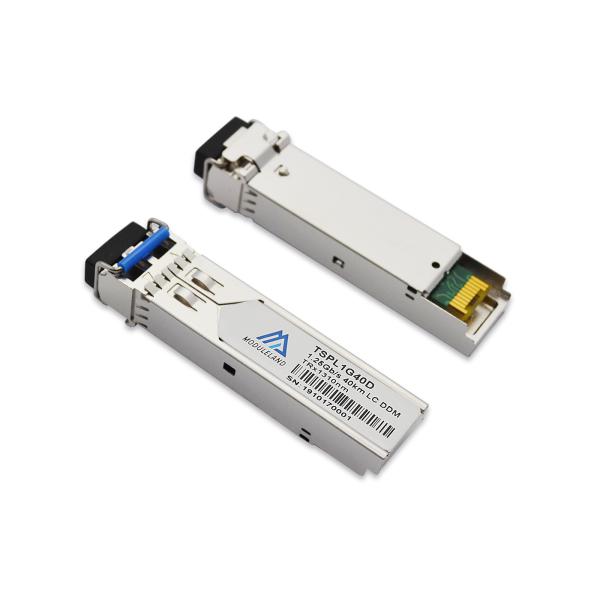

MODULELAND’s TSPL1GC0D Transceiver is a high performance, cost
effective module which have a duplex LC optics interface. Standard
AC coupled CML for high speed signal and LVTTL control and monitor
signals. The receiver section uses an APD receiver and the
transmitter uses a 1550 nm DFB laser, up to 32dB link budge ensure
this module 1000Base Ethernet 120km application.
