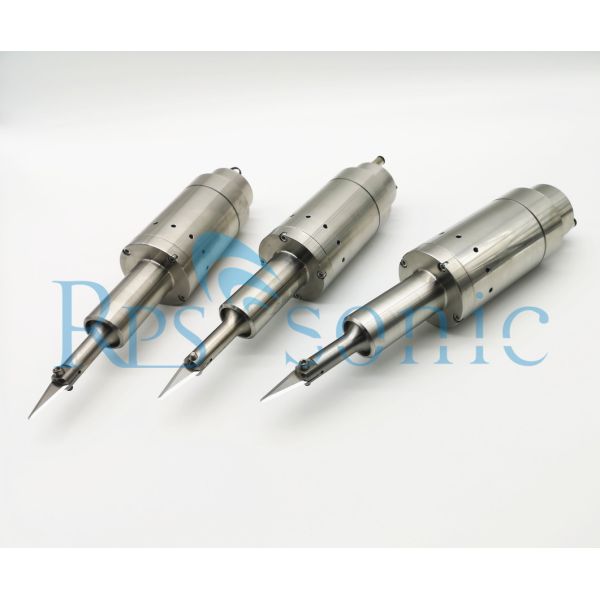

300 Watt 40Khz Handheld Ultrasonic Cutting Device For Honeycomb Cutting

40Khz 300w Handheld Ultrasonic Cutting Device for honeycomb cutting

Parameter

Introduction

This is a high-frequency cutter featuring the 40 kHz (40,000 vibrations

per second) vibration frequency of tool with the amplitude of 30 microns.

It maximizes the effect of ultrasonic high-speed micro vibrations. A wide

range of materials, including newly developed composite materials,

rubber and leather, can be cut at will with low processing pressure, sharp

cutting surface and little cutting chips. The power control circuit specially

developed by us and the cooling air inlet suppress the heat generation of

transducer even for large amplitude, thus enabling extended continuous

use. (For a long-time operation without air cooling, contact us.)

Description

RPS-SONIC Ultrasonic cutting systems are ideal for cutting rubber, composite aerospace materials such carbon fiber, Nomex and various honeycombs. RPS-SONIC’s ultrasonic cutting systems can be operated as hand-held units or incorporated into automated machinery. Our applications and design engineering team have developed industry leading tooling to meet the rugged demands of cutting applications. Solid, one-piece construction of horn blade technology virtually eliminates breakage and energy loss. Our robust designs provide minimal blade flexure which yields straight cuts without having to support the blade. RPS-SONIC cutting systems come in 20,30, 35, and 40 kHz frequencies. Where aggressive cuts are needed our 20 kHz ultrasonic generators and tooling are a great solution. If a smaller footprint or lighter payload is needed our 30 and 40 kHz cutting systems are a great fit and provide a quiet operating environment. Our ultrasonic horns designed to work with replaceable carbide cutting blades is a proven solution for aerospace materials that would otherwise not be feasible with standard ultrasonic tooling materials.

Features

• Ultrasonic Cuts are cleaner than conventional cutters with minimal debris

  Ideal for cutting rubber, composite aerospace materials such carbon fiber, nomex,and various honeycombs

• Replaceable blade technology reduces setup time and reduces replacement tooling costs.

  Our ultrasonic horns designed to work with replaceable carbide cutting blades is a proven solution for aerospace materials that would otherwise not be feasible with standard ultrasonic tooling materials.

• Available in 20,30, 35, and 40 kHz frequencies

  Where aggressive cuts are needed our 20 kHz ultrasonic generators and tooling are a great solution. If a smaller footprint or lighter payload is needed our 30 and 40 kHz cutting systems are a great fit and provide a quiet operating environment.

• Large inventory of standard carbide cutting blades for all shapes and sizes of applications.

  Our applications and design engineering team have developed industry leading tooling to meet the rugged demands of cutting applications.

• Robust Design

  Minimal blade flexure which yields straight cuts without having to support the blade

R-Responsibility P-Products S-Service

sale the right products instead of the expensive one

Rps-sonic, consisted with a couple of young people who love ultrasonic very much.The founding members of RPS-SONIC have an average degree of Bachelor's degree or above. They have been in the ultrasonic industry for more than 5 years and have rich experience in ultrasound. The company's business philosophy is: Do not blindly promote any product, find the right product for the customer. So before each order, we will confirm all the details, including application details, equipment conditions, equipment specific information.

And we have the Professional import and export company， HangZhou LanBen Trade Co., Ltd, can export to any country wordwide.

Before year 2012, we only sale second branson / dukane / rinco / herrman/telsonic welding equipment , during these twenty year develop, we find, more and more people have problem with the core part of ultrasonic welding equipment -generator and transducer, so we decided to start our business of transducer and generator of our own transducer and generator. Many of the end user meet the transducer problem, they don’t know why transducer broken, and changing the expensive transducer one by one. Actually, one branson /dukane /rinco transducer can use 10~30 year, even the cheapest transducer can use about 5 years. So there must some reasons if your transducer broken in one year. That’s why we want build Rps-sonic, we need to help more end user to know more about transducer , to use ultrasonic equipment better, to save cost when meet problem.

The same to generator, Unreasonable operation may shorter the use-life of ultrasonic generator. So we have to make technical inquiry before operate ultrasonic welding machine. The key point of ultrasonic machine is resonance, only keep every part in resonance can make the system in best work environment.

Till now , we still have a lot of Branson /dukane/ rinco/ herrman telsonic welding machine, so that we can confirm every transducer/generator we made can matching to the original machine.

Of course we can make the transducer/generator replace for Branson /dukane/ rinco/ herrman telsonic welding machine, we can also make transducer/generator for any application of your ultrasonic equipment. We supply OEM service for oversea customers, we already have OEM customer in USA and German.

If you have any problem in ultrasonic area, welcome contact Rps-sonic.
