64G 128G GPS WIFI 4G Small Body Cameras API SDK Integration ONVIF
64G/128G GPS WIFI 4G Wearable Body Worn Camera API/SDK Integration
ONVIF

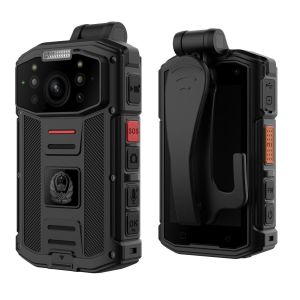

BWC-R3H is an android system 4G body worn camera, it support
4K/2K/1080P HD resolution for both local recording and live video
transmission, the openly android system allow to install third part
app, such as facial recognition, plate recognition and so on; It
support emergency alarm upload, video window pop-up automatically
in the center server, and reminding by special audio alarm.
Main Feature:
Replaceable batteries design,3050mAH each
Menu login password protection supported
Removable disk mode supported
Infrared LEDs for night vision
Optional NFC recognition supported
Supports zoom in and out in preview
Support built-in vibration
Support to connect an external camera optional
Datasheet of body camera:
| Model No. | BWC-R3H |
| Main function | System | MTK platform, android system 7.1 |
| CPU | 8-core 64-bit, 2.3GHz |
| Memory | 2G+64GB |
| Lens& Sensor | 13M CMOS sensor, 110 degree wide-angle |
| Screen | 3.1inch color touch screen |
| External port | Support Type-C USB3.0 |
| Storage | Up to 256GB, standard is 64GB (Built-in Flash) |
| Video | Resolution | 4K30FPS, 2K30FPS, 1080P30FPS, 720P30FPS, 480P30FPS |
| Compression | H.265/H.264, Video format is MP4 |
| Video clip | Configurable options, such as 10,20,30 minutes |
| Pre-recording | Up to 60 seconds. |
| Post-recording | 10s to 30mins configurable |
| Snapshot | Picture | 42 Mega interpolation maximum |
| Picture format | JPEG |
| Night Vision | Distance | Up to 10 Meters |
| IR switch | Auto or manual |
| Flashing light | Support blue and red flashing light |
| Power | Battery | 3200mAh |
| Working hours | 720P continues working 8 hours |
| Charging time | Less than 3 Hours |
| Structure | Weight | 170g |
| Dimension | 96x60x21 (mm) |
| Drop resistance | 2 meters |
| IP grade | IP66 |
| Working Temp | -30 degree to +55 degree |
| Others | 4G network | TDD-LTE Band38/39/40/41
FDD-LTE Band1/2/3/4/5/7/8/20
GSM 850/900/1800/1900
WCDMA Band1/2/5/8
TD-SCDMA Band34/Band39 |
| Built-in WIFI | 802.11 a/b/g/n, support both 2.4G and 5G frequency |
| Built-in GPS | For GPS live tracking |
| Bluetooth | BT4.2, for wireless earphone |
| Quality | Certification | CE, FCC |
Solution of body camera:
FAQ:
Can we change the camera ID info by ourselves?
Normally, not support the end user to change the camera ID, we will
share the special tool software for our distributor to modify the
camera ID and other info.
What is the android version of the camera?
The 4G body camera is based on android 7.1 operating system
What language of the UI interface it can support?
Currently, we have English, Spanish, Russia, Vietnamese and so on,
just let us know what you need, and we can do the customization.
How long time the built-in battery can support?
If the built-in small battery is full recharged, it can stand 10
minutes.
Does the SD card storage be removable?
No, the SD card storage is built-in and fixed, don’t allow removing
it.
