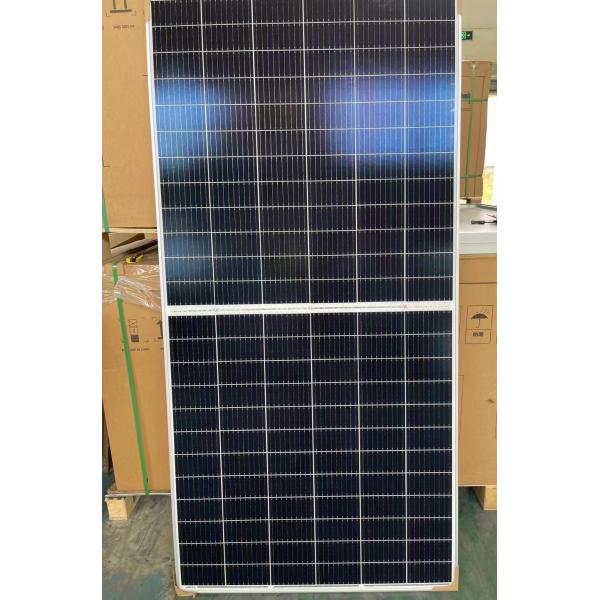

FSM400~FSM410M72 (400W/405W/410W) MONO PERC 144 Half Cell PV Module
Electrical Characteristics under STC (Irradiance 1000W/m², Cell Tem. 25℃, AM 1.5)
| Module Type | FSM400M72H | FSM405M72H | FSM410M72H |
| Maximum Power-Pmax (Wp) | 400 | 405 | 410 |
| Voltage at Maximum Power-Vmp (V) | 41.7 | 42.0 | 42.3 |
| Current at Maximum Power-Imp (A) | 9.60 | 9.65 | 9.69 |
| Open Circuit Voltage-Voc (V) | 49.8 | 50.1 | 50.4 |
| Short Circuit Voltage-Isc (A) | 10.36 | 10.48 | 10.60 |
| Module Efficiency-ηm (%) | 19.9% | 20.1% | 20.4% |
| Operating Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1000V/1500V DC (IEC) |
| Power Tolerance | 0~+4.99W |
| Temperature Coefficients of Pmax | -0.350%/℃ |
| Temperature Coefficients of Voc | -0.289%/℃ |
| Temperature Coefficients of Isc | 0.048%/℃ |
Mechanical Characteristics
| Cell Type | G1 MONO PERC 158.75×79.375mm |
| No. of Cells | 144 (2×72) |
| Dimension | 2008×1002×35mm |
| Weight | 22 Kg |
| Junction Box | IP68, 3*20A diodes |
| Output Cables | 4.0mm², 500mm Length (Optional) |
| Connectors | MC4 compatible |
| Packing | 31PCS/Pallet, 726PCS/40’HC |
Technical Information
- Gallium doped 158.75mm Mono Half Cell adopts PERC technology to
guarantee higher output power and higher module efficiency (up to
20.4%).
- Mono PERC Half Cell PV module offers better temperature-dependent
performance, less shading effect on the energy generation, lower
risk of hot spot.
- Excellent Anti-PID performance guarantee limited power degradation
for mass production.
- Full production from automatic equipment and production line, which
eliminates human errors and improves product quality.
- Around 0.55% annual power degradation and 30 years linear power
warranty.
- Low iron tempered glass adopts new technology to increase light
transmittance.
- Module power increas 5~10W with half cell design, lower LCOE and
higher IRR.
- Split junction box with separate connectors for easy installation.
- Three channels of EL automatic detections and power test before
packing.
- MES system applied together with production line to ensure products
information searchable and traceable.
Descriptions of FINERGY
FINERGY Solar Tech headquartered in Wuxi, PR China, is a spin-off
of Delin Group. FINERGY launched 3 international certified
workshops in the industrial park which produce both mono and poly
crystalline solar panels. With the development of emerging market,
we enlarged the capacity of solar panels production to 800MW per
year. All the production are finished by automatic equipment and
production lines.
FINERGY delivers hundreds MW of proven solar performance to
residential, commercial and utility scale power plant customers per
year, which can get more benefits from our collaboration.
FINERGY provides high efficiency solar panels and systems which can
generate more energy per unit area.
Quality Control of Finergy Solar Panels Manufacturing
Quality is the life of FINERGY. The company established a perfect
quality control system and implements the whole process quality
control of raw materials, production, inspection, warehousing,
delivery and etc. Through advanced automatic equipment and
production line, it’s able to eliminate human defects and improve
products quality. Through digital information systems, we can
achieve products quality traceability, provide customers with
efficient and quick after-sales service to protect the benefits of
customers.
