FSM325~FSM335M60B (325W/330W/335W) Full Black MONO PERC PV Module
Electrical Characteristics under STC
| Module Type | FSM325M60B | FSM330M60B | FSM335M60B |
| Maximum Power-Pmax (Wp) | 325 | 330 | 335 |
| Voltage at Maximum Power-Vmp (V) | 33.6 | 33.8 | 34.0 |
| Current at Maximum Power-Imp (A) | 9.68 | 9.77 | 9.87 |
| Open Circuit Voltage-Voc (V) | 41.1 | 41.3 | 41.5 |
| Short Circuit Voltage-Isc (A) | 10.20 | 10.31 | 10.36 |
| Module Efficiency-ηm (%) | 19.5% | 19.8% | 20.1% |
| Operating Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1000V/1500V DC (IEC) |
| Power Tolerance | 0~+4.99W |
| Temperature Coefficients of Pmax | -0.350%/℃ |
| Temperature Coefficients of Voc | -0.270%/℃ |
| Temperature Coefficients of Isc | 0.048%/℃ |
Mechanical Characteristics
| Cell Type | MONO PERC 158.75×158.75mm |
| No. of Cells | 60 (6×10) |
| Dimension | 1665×1002×35mm |
| Weight | 18 Kg |
| Junction Box | IP68, 3*20A diodes |
| Output Cables | 4.0mm², 1100mm Length (Optional) |
| Connectors | MC4 compatible (Optional) |
| Packing | 31PCS/Pallet, 952PCS/40’HC |
Product Key Features
- Mono Solar Cell adopts PERC technology to guarantee higher output
power and higher module efficiency (up to 20.1%).
- Excellent Anti-PID performance guarantee limited power degradation
for mass production.
- Advanced glass and cell surface textured design ensure excellent
performance in low-light environment.
- Full production from automatic equipment and production line to
eliminate human errors and improve quality.
- Certified to withstand: front side Max. 5400Pa, rear side Max.
2400Pa.
- Solar cells, backsheet and frames with uniform black color on
production to ensure final product with excellent visual
appearance.

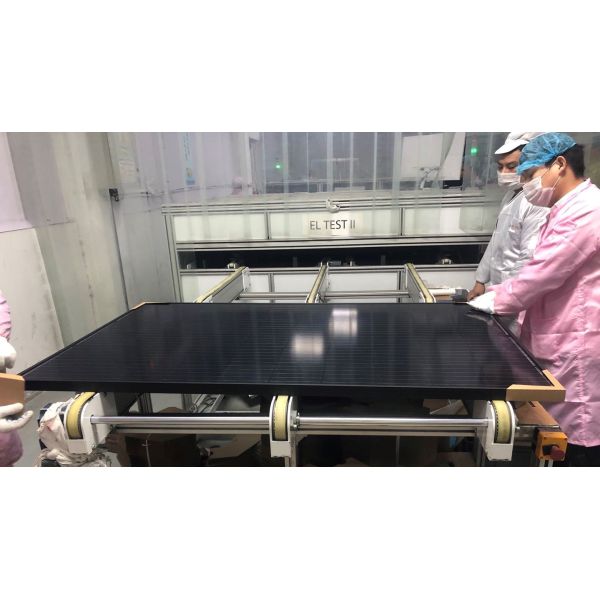

- The first, middle and last three channels of EL automatic
detections and electrical characteristics test before packing.
- MES system applied together with automatic production to ensure
product data searchable and traceable.
- 15 years product workmanship warranty and 30 years linear power
damping warranty.
Advantages of Finergy
- Cost Control
FINERGY is in-depth study of intelligent manufacturing. We combined
international advanced automation facilities and production lines
together with ERP, MES, WMS and CRM information systems. We will
actively explore and practice the integration of the two to build a
smart factory. In the processes of promotion, we will improve the
process capacity, reduce the number of products in process, improve
the production efficiency; improve the rate of good products,
reduce the quality cost; save the labor cost, eliminate the waste
and reduce the comprehensive cost.
- Quality Control
Quality is the life of FINERGY. The company established a perfect
quality control system and implements the whole process quality
control of raw materials, production, inspection, warehousing,
delivery and etc. Through advanced automatic equipment and
production line, it’s able to eliminate human defects and improve
products quality. Through digital information systems, we can
achieve products quality traceability, provide customers with
efficient and quick after-sales service to protect the benefits of
customers.
- Green to Green Factory
The total power consumption of FINERGY workshops comes from the
solar systems on the factory roofs. It’s a circle of solar energy
application. FINERGY is a practical case of energy conservation and
emission reduction.
Workshop Condition
Solar Roof System of FINERGY Factory
