High quality Regular Planetary Gearbox.D32mm.L31.2 /38.7/
46.2/53.7mm
Product introduction:

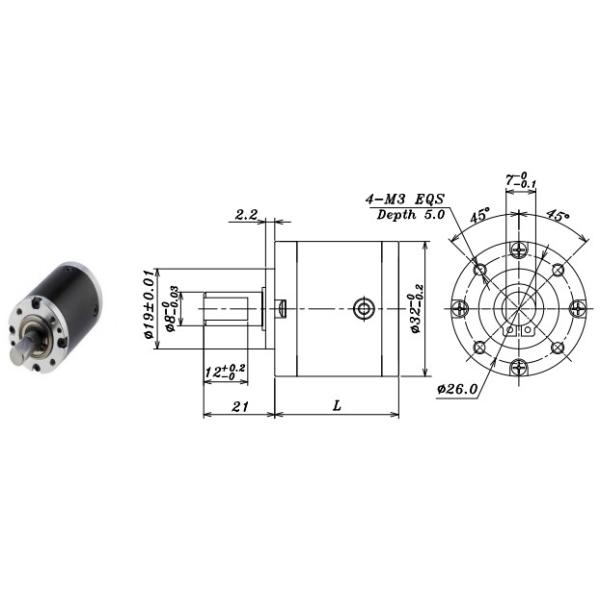

1.Regular Planetary Gearbox diameter 32mm.length 31.2mm 38.7mm
46.2mm 53.7mm.
2.Gear type: Straight teeth Average backlash on load: ≤2°
3.Output shaft : stainless steel hardened Radial Play : ≤ 0.1
4. Main gear: Alloy Steel Permissible axial load : ≤110N
5. Ring gear : Steel Permissible force press fits : ≤200N (5mm from
mounting face)
6.Adapter plate: Copper Recommeneded inut speed ≤8000RPM.
7.Bearing AT output :Ball bearing Operating temperature range:
-20~50℃.
8Axial play: 0~0.3 Operating hunidity range : 10-90%RH. Directions
: CW/CCW.
Product Detail:
| Number of stage | 1 | 2 | 3 | 4 |
| Reduction ratio X :1 | 3.4 3.8 4.4 5.3 6.7 | 12 18 28 13 19 29 15 20 35 17 23 44 26 | 40 74 129 45 85 152 50 95 184 56 106 233 65 121 296 | 296 534 1016 327 637 1136 375 760 1304 405 860 1556 447 965 1975 |
| Gearbox length L (mm) | 31.2 | 38.7 | 46.2 | 53.7 |
| Max.continuous torque(N.m) | 1.9 | 2.5 | 3.2 | 3.9 |
| Max.intermitten torque(N.m) | 2.9 | 3.8 | 4.8 | 5.7 |
| Gearbox efficiency | 90% | 81% | 72% | 65% |
| Moment of inertia range(g.cm²) | 1.5 | 1 | 1 | 1 |
| Gearboxweightapprox (g) | 135 | 168 | 200 | 236 |
| Gearbox model | AM-32PA-X-01 | AM-32PB-X-01 | AM-32PC-X-01 | AM-32PD-X-01 |
Recommended Motor :
Coreless Motor (w/E) : AM-CL2831MAN AM-CL2545MAN
Brushless Motor(w/E): AM-BL2845AN
Recommended Encoder :
Suitable for Coreles Motor: Encoder S : AM-EN1611S***
Suitable for Brushless Motor : Encoder S : AM-EN1611S*** Encoder T
: AM-EN2412T***
Assun Planetarty gearbox can install the corresponding with Encoder
and DC Graphite Brush/ Brushless Motor
Assun precision plantary gearbox application of positive element in
intelligent equipment
Service idea :
We can search for qualified products according to the required
specifications (size, torque, revolutions, etc.) of gearbox, DC
motor and reducer proposed by customers. The products searched are
just one example of a rich product lineup, and there are many
products that have not been published. At the same time, we also
undertake special product design and OEM development. For relevant
matters, please contact the business department of our company.
