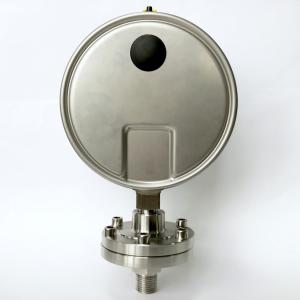

160mm Dial Pressure Gauge Diaphragm Seal 100 Mbar 900 Mbar Radial

Ask Lasest Price
Brand Name :	WESEN or Customized
Model Number :	M11.01.160.N
Certification :	CE, ISO
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	20000 Pieces per Month
Delivery Time :	3~4 Weeks

Add to Cart

Product Details
Company Profile

160mm Dial Pressure Gauge Diaphragm Seal 100 Mbar 900 Mbar Radial

160mm Dial Pressure Gauge Diaphragm Seal 100 Mbar 900 Mbar Radial

Description
Backlash is mainly caused by wear on the teeth of the gears. Vibrations and pulsations are making it even worse. A pressure gauge with backlash on the gears will always indicate a pressure which is too low or too high. Subjected to pulsations, the backlash will cause the pointer to rotate further to the left and right than would normally be the case without backlash. Having a fixed link is making the spiral Bourdon tube pressure gauge very resistant to extreme vibration or pulsation. Pressure Gauge Diaphragm Seal Manufacturer- Wesen Technologies.

Applications
Hygienic pressure measurement in sanitary applications for the pharmaceutical, biotechnology, food and beverage industries
Mechanical pressure display on pipelines, fermenters, bioreactors and vessels
Pressure/vacuum monitoring during cleaning, sterilisation, pressure testing
For gases, compressed air, vapour; liquid, pasty, powdery and crystallising media

Special features
Safety via mechanical pressure transmission
Case and wetted parts in hygienic design
Suitable for SIP and CIP, autoclavable version available
Easy zero point setting
High overload safety

**Specifications**
Design	EN 837-1
Nominal size	160mm
Accuracy	1.0
Pressure range (bar)	0...1.6, 0...2.5, 0...4, 0...6, 0...10, 0...16, -1...+0.6, -1...+1.5, -1...+3, -1...+5, -1...+9, -1...+15
Pressure limitation	Steady: Full scale value Fluctuating: Scale range <4 bar: Full scale value Scale range ≥4 bar: 2/3 x full scale value
Overload safety	2x full scale value, max. 40 bar or max. pressure rating (PN) of the process connection 5x full scale value, max. 40 bar or max. pressure rating (PN) of the process connection
Vacuum resistance	Without Vacuum resistance to -1 bar Depending on the scale range, vacuum resistance is provided or available on request
Permissible temperature	Ambient: -20 ... +60 °C Mediium: -20 ... +150 °C CIP and SIP: 150 °C continuously for wetted parts Autoclavable version, max. 134 °C, ≤ 20 minutes
Ingress protection	IP54
Temperature effect	When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.5 %/10 K of full scale value
Process connection	Stainless steel, SUS 304, SUS 316
Pressure element	Diaphragm element, welded to the process connection
Movement	SUS 304
Dial	Aluminium, white, with pointer stop pin
Pointer	Aluminium
Case	Stainless steel
Ring	Stainless steel
Window	Plastic, glass, safety glass
Unit	bar, psi, kg/cm2, kPa, MPa
Options	Other process connection thread Surface mounting flange Mounting bracket

Dimensions

DN	For pipe Outer Ø x wall thickness	PN	Dimensions in mm
DN	For pipe Outer Ø x wall thickness	PN	NG	h	Ø Plf	d	k
1 ½"	38.1 x 1.65	40	100	91	35	50.5	15
2"	50.8 x 1.65	40	100	91	35	64	15

Ordering information
Model / Dial size / Pressure Range / Process connection / Options
