    Durable Adjustable Aluminum Solar Panel Mounting System PV Structure 10 Years Warranty

    Ask Lasest Price
    Brand Name : Nacyc Energy
    Model Number : MetisVS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10 Megamatts per Month
    Delivery Time : Shipped in 15 days after payment
    • Product Details
    • Company Profile

    Durable Adjustable Aluminum Solar Panel Mounting System PV Structure 10 Years Warranty

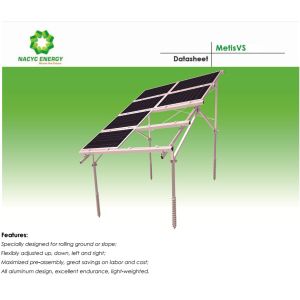

    Adjustable Aluminum Solar Mount Structure


    KEY BENIFTS:

    Specially designed for rolling ground or slope;

    Flexibly adjusted up, down, left and right;

    Maximized pre-assembly, great savings on labor and cost;

    All aluminum design, excellent endurance, light-weighted;

    E-W angle of ground should be a maximum of 30 degrees.


    High Space Utilization

    It is possible to utilize more space within a site perimeter. Maximize your use of land resources.


    Significant Savings

    1.The design is engineered for strength and durability and minimizes material use without compromise to strength and load.
    2.A high percentage of factory pre-assembled components means faster installation, hence lower installation costs.
    3.Hilly terrain can be challenging to installers. When installing ground screws or piles errors often occur when levelling on hills. The system is a very forgiving system when a machine operator lapses concentration.
    4.MetisVS system is a Modular system and makes the installation process easier. MetisVS system attaches to either ground screws or concrete block.


    ApplicationRolling ground or slope
    Max. tilt angle30 degrees of E-W angle for ground; 30 degrees of N-S angle for mounting systems. (Varies by project)
    Max. wind speed40m/s
    PV moduleFramed
    Module orientationLandscape & Portrait
    FoundationGround screw & Concrete block
    MaterialAnodized aluminum (Rail, Clamps) Q235 steel, hot galvanizing (Ground screw) SUS304 (Hex bolts)
    Warranty10 years
