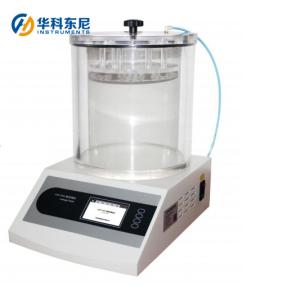

ASTM D3078 & GB/T 15171 Package Leakage Tester - HTZ 051

    Buy cheap ASTM D3078 & GB/T 15171 Package Leakage Tester - HTZ 051 from wholesalers

    Buy cheap ASTM D3078 & GB/T 15171 Package Leakage Tester - HTZ 051 from wholesalers
    • Buy cheap ASTM D3078 & GB/T 15171 Package Leakage Tester - HTZ 051 from wholesalers

    ASTM D3078 & GB/T 15171 Package Leakage Tester - HTZ 051

    Ask Lasest Price
    Brand Name : HUST Tony
    Model Number : HTZ-051
    Price : contact saler
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    ASTM D3078 & GB/T 15171 Package Leakage Tester - HTZ 051

    Application :For the determination of gross leaks in flflexible packaging containing a headspace gas by bubble emission method.
    Technical indexes
    1. Vacuum Range: 0 ~ - 90kPa(standard)
    2. Accuracy: 0.1%FS
    3. Effective Size of Vacuum Chamber:
    • Φ270mm×220mm(H) (standard)
    • Φ360mm×590mm(H)(optional)
    • Φ460mm×330mm(H)(optional)
    • Note: other vacuum chamber size is customized.
    1. Gas Source Pressure: 0.4MPa~1.0MPa (self-provide)
    2. Gas Interface: Φ6mm
    3. Vacuum Chamber Outer Size: Φ300mm×355mm (H) (standard)
    4. Main Unit Dimension: 335mm(L)×450mm(W)×160mm(H)
    5. Power Supply: AC 220V 50Hz
    6. Net Weight: 27kg(main unit + standard chamber)
    Standard
    ASTM D3078, GB/T 15171
    Features

    1. High-accuracy pressure sensor inside.
    2. Overload warning.
    3. RS232 communication port.(Optional)
    4. Touch screen operation, real color TFT LCD display.

    accessories:
    main unit, vacuum chamber, spare tube

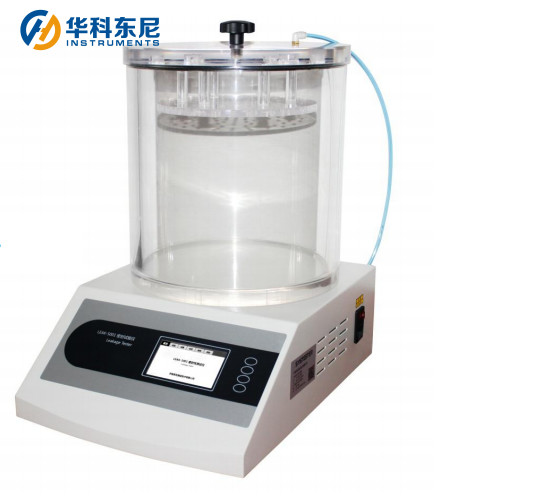

    Quality ASTM D3078 & GB/T 15171 Package Leakage Tester - HTZ 051 for sale
