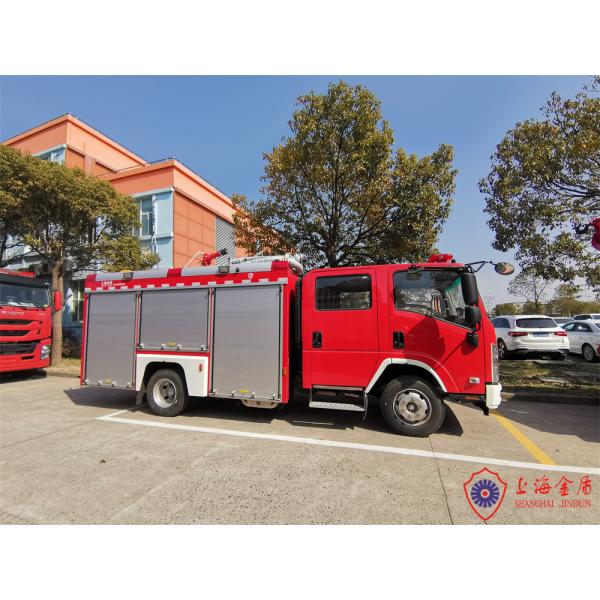

Flexible Mini Size 4x2 Drive Water Tanker Fire Truck with 3500
Liters Water
SG35/B water tank fire truck adopts QL11009KARY ISUZU chassis,
CB10/30-XZ fire pump, and other fire-fighting equipment. The
vehicle has the features of a good structure and reasonable layout,
easy operation and maintenance. It is usually used by public
security fire brigades in large and medium cities, petrochemical
companies and airports and other professional fire brigade.
1. Vehicle
1.1 Dimensions : 6870x2240x3040 mm
1.2 Full load permissible weight : 10000 kg
1.3 Vehicle total weight : 6125 kg
1.4 Fire-extinguishing agents: water 3500 liters
1.5 Number of passengers (incl. driver): 5
1.6 Max. Power: 139kw/189hp
2. Chassis
2.1 Name: Isuzu
2.2 Model: QL11009KARY
2.3 Drive Type: 4x2
2.4 Cab: double cabin (1 + 1 + 3), the rear seat backrests fit with
three fixtures for putting Self Contained Breathing Apparatus.
2.5 Wheelbase : 3815mm
2.6 Chassis weight: 2970Kg
2.7 Max. permissible load: 7030Kg
2.8 Maximum speed: 110Km/h
2.9 Min. turning diameter:＜15.2m
2.10 Engine: Inline four-cylinder, water-cooled, electronically
controlled two-stage, high-pressure common-rail, turbocharged,
intercooled, diesel engine electronic control
2.11 Type: 4HK1-TCG40
2.12 Max. power: 139Kw/ 2600r/min
2.13 Max. torque: 510N.M/1600rpm
2.14 Emission standard: China Ⅳ
2.15 Clutch: Single, dry, diaphragm spring, oil and gas booster
2.16 Gearbox: MLD-6Q
2.17 Fuel tank: 100L
2.18 PTO: YTQ250(electric control)
2.19 Tyre: 8.25tyre
3. Fire pump
3.1 Mode: CB10/30-XZ
3.2 Pressure/flow rate: 1.0MPa 30L/s
3.3 Type: piston vacuum pump
3.4 Max. vacuum degree: ≥85 kpa
3.5 Suction depth: 7m
3.6 Priming time: ≤35s
Company Profile:
Jindun as a member of China Fire Protection Association, was
certified by TUV System, NFPA and CCCF. By excellent products and
innovative technology, we are engaged in developing a “safe,
livable and rich society.”
The company specializes in R & D and production of ladder cars,
high pressure jet trucks, rail dual purpose fire engines, remote
water supply vehicles, climbing platform vehicles, water tank foam
cars, AT cars, emergency rescue vehicles, marine fire engines,
anti-chemical detection vehicles, anti-chemical and decontamination
vehicles, CAFS fire engines, airport fire engines, unmanned
fire-fighting tankers, lighting fire engines, gas trucks, etc., and
according to the changes of fire market and customer demand,
Continue to develop high-end special fire engines and
multifunctional and intelligent fire-fighting equipment.
