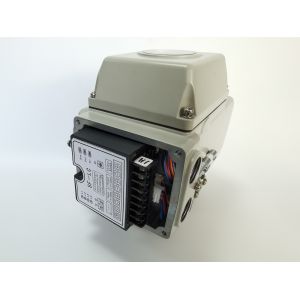

    Modulating Electric Actuator Control Pack Integrate Analog Signals and Fieldbus Protocal

    Ask Lasest Price
    Brand Name : DCL
    Model Number : DCL modulating electric actuator
    Certification : CE/ROHS/CSA/IP67
    Payment Terms : D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000PCS/month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    Modulating Electric Actuator Control Pack Integrate Analog Signals and Fieldbus Protocal

    Russian Catalog.pdf

    Description

    DCL integrate kinds of control signals(4-20mA/1-5V/2-10V etc.) and Modbus protocol to one compact control pack, which can be used for DCL all models of electric actuators.

    Fieldbus control systems are now becoming more and more popular in many industries. Using fieldbus control system can sharply lower the costs of system construction and maintenance. Distributors and system integrators only need to keep one type of stocks for two types of control signals,

    Adapt to DCL-10 to DCL-250, 24VDC/24VAC/110VAC/220VAC/380VAC

    Full potted controller resistant to moisture and salty environment.

    Compact but smart with self-adaptation programs to different control systems.


    Specification:


    Actuator TypeStandard Time/TorqueOptional Time/TorqueTurning Angle(Max.range)Total WeightPower SupplySelected Control Circuit
    DCL-0215S/18Nm7S/9Nm 60S/18Nm0~90°Adjustable1.2KgDC24V/AC24V AV110V/AC220VTypes of A/B/E/G
    DCL-0520S/50Nm4S/20Nm 10S/30Nm 60S/50Nm0~360°Adjustable2.5KgDC24V/AC24V AV110V/AC220V/AC380VTypes of A/B/C/D/E/F/G/H
    DCL-1030S/100Nm15S/50Nm 60S/100Nm0~360°Adjustable4.5KgDC24V/AC24V AV110V/AC220V/AC380VTypes of A/B/C/D/E/F/G/H
    DCL-2030S/200Nm15S/100Nm 60S/200Nm0~90°Adjustable9KgDC24V/AC24V AV110V/AC220V/AC380VTypes of A/B/C/D/E/F/G/H
    DCL-4030S/400Nm15S/200Nm 60S/400Nm9.5Kg
    DCL-6045S/600Nm10Kg
    DCL-10030S/1000Nm15S/500Nm0~90°Adjustable19KgAV110V/AC220V/AC380VTypes of A/B/C/D/E/F/H
    DCL-16048S/1600Nm19.5Kg
    DCL-25075S/2500Nm20Kg
    Performance Parameters List of Adjusting type(Type E)
    DCL-MZZ18Nm3r1.2KgDC24VType MZZ
    DCL-10GE30S/0~100Nm15S/0~100Nm0~90°Adjustable4.5KgDC24V±10%Type GE
    DCL-40GE30S/100~600Nm15S/100~400Nm9.5Kg

    Actuator TypeButterfly Valve(≤PN1.0MPa)Ball Valve(≤PN1.6MPa)Vent Valve(≤PN0.1MPa)
    DCL-02≤DN40≤DN32
    DCL-05DN50~65DN40DN50~80
    DCL-10DN80~100DN50~65DN100~200
    DCL-20DN125~150DN80~100DN250~300
    DCL-40DN200DN125DN350~450
    DCL-60DN250DN150DN500~600
    DCL-100DN300DN200DN700~800
    DCL-160DN350~400DN250DN900
    DCL-250DN450~600DN300~350DN1000~1200
