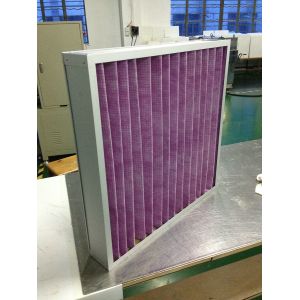

    Medium Efficiency Folding Panel Factory Air Filter For Electronic Precise Machinery

    Ask Lasest Price
    Brand Name : Klair Filter
    Certification : ISO 16890
    Price : USD25-35
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 500pieces/everyday
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    Medium Efficiency Folding Panel Factory Air Filter For Electronic Precise Machinery

    Medium Efficiency Folding Panel Filter for Hospitals Semiconductor Electronic Precise Machinery Factory Air Filter


    Applications:


    The Klair filter series medium efficiency filter is divided into bag type and non-bag type. Non-bag type includes plate type medium efficiency filter, partition type medium efficiency filter and combined medium efficiency filter. , Pharmaceutical, electronics, food and other industrial purification, can be used as the front-end filtration of high-efficiency filters;


    Cleanroom, commercial and industrial ventilation and air conditioning system;


    Electronics, pharmaceutical, hospitals, food and other industries in the final filter;


    High ventilation requirements or high ventilation temperature ventilation and air conditioning system.


    Features:


    Compact design of the box, filter and the perfect combination of airframe
    Efficiency is stable, low resistance, dust capacity
    Good wind speed uniformity, long service life


    Advantages:


    1.Large dust holding capacity
    2.The low pressure loss in the initial period
    3.Lager air flow


    Specifications:


    Frame: Cardboard /Aluminum
    Media: Pleated Polyester synthetic fiber
    Grille:None / Metal mesh
    Design:Panel
    Fiber class according to EN779: 2012: F5
    Fiber class according to ASHRAE 52.2-2007:MERV13
    Maximum temperature: 80ºC
    Maximum relative humidity: 99%
    Customized size: Available


    Technical Data Sheet:


    PART NUMBERFILTER DIMENSIONS (HxWxD)NUMBER OF PLEATSMEDIA AREARATED AIR FLOwINITIALPRESSUREDROP (IN.W.G.)
    NOMINAL (inch)ACTUAL(mm)(SQ.FT.)( cfm)( m3/h)MERv6MERv7MERV9
    Flow @ 500 FPM/2.5 mls
    HD-2424124x24x1595x595x21286.8200034000.20.210.25
    HD-2420124x20x1595x495x21246175029750.20.210.25
    HD-2418124x18x1595x432x21205.1150025500.20.210.25
    HD-2412124x12x1595x289x21143.4100017000.20.210.25
    HD-2516125x16x1620x394x21184.7140023800.20.210.25
    HD-2016120x16x1495x394x21183.8111518950.20.210.25
    HD-2020120x20x1495x495x21204.8140023800.20.210.25
    HD-2525125x25x1620x620x21307.4217036890.20.210.25
    HD-2424224x24x2595x595x462211.8200034000.150.170.21
    HD-2420224x20x2595x495x46189.8174029580.150.170.21
    HD-2418224x18x2595x432x46168.8150025500.150.170.21
    HD-2412224x12x2595x289x46115.9100017000.150.170.21
    HD-2516225x16x2620x394x46148.1140023800.150.170.21
    HD-2016220x16x2495x394x46146.7111518950.150.170.21
    HD-2020220x20x2495x495x46188.3140024800.150.170.21
    HD-2525225x25x2620x620x462412.8217036890.150.170.21
    HD-2424424x24x4595x595x961821.8200034000.180.20.24
    HD-2420424x20x4595x495x961518.2174029580.180.20.24
    HD-2418424x18x4595x432x961416.3150025500.180.20.24
    HD-2416424x16x4595x395x961214.3135022950.180.20.24
    HD-2412424x12x4595x289x96910.6100017000.180.20.24
    HD-2516425x16x4620x394x961215140023800.180.20.24
    HD-2016420x16x4495x394x41212111518950.180.20.24
    HD-2020420x20x4495x495x961515.1140023800.180.20.24
    Pressure drop : +15%

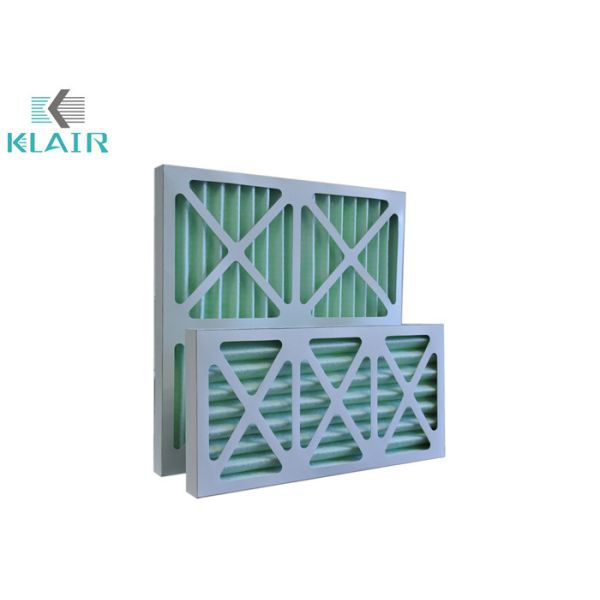

    Quality Medium Efficiency Folding Panel Factory Air Filter For Electronic Precise Machinery for sale
