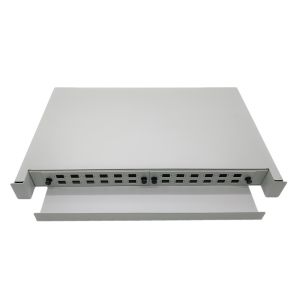

24 Core Sliding Terminal Box ODF Patch Panel 19 Inch Network Cabinet Mount Type

    Buy cheap 24 Core Sliding Terminal Box ODF Patch Panel 19 Inch Network Cabinet Mount Type from wholesalers

    Buy cheap 24 Core Sliding Terminal Box ODF Patch Panel 19 Inch Network Cabinet Mount Type from wholesalers
    • Buy cheap 24 Core Sliding Terminal Box ODF Patch Panel 19 Inch Network Cabinet Mount Type from wholesalers
    • Buy cheap 24 Core Sliding Terminal Box ODF Patch Panel 19 Inch Network Cabinet Mount Type from wholesalers
    • Buy cheap 24 Core Sliding Terminal Box ODF Patch Panel 19 Inch Network Cabinet Mount Type from wholesalers
    • Buy cheap 24 Core Sliding Terminal Box ODF Patch Panel 19 Inch Network Cabinet Mount Type from wholesalers
    • Buy cheap 24 Core Sliding Terminal Box ODF Patch Panel 19 Inch Network Cabinet Mount Type from wholesalers
    • Buy cheap 24 Core Sliding Terminal Box ODF Patch Panel 19 Inch Network Cabinet Mount Type from wholesalers

    24 Core Sliding Terminal Box ODF Patch Panel 19 Inch Network Cabinet Mount Type

    Ask Lasest Price
    Brand Name : FONGKO
    Model Number : FKPPA-020
    Price : Negotiatable
    • Product Details
    • Company Profile

    24 Core Sliding Terminal Box ODF Patch Panel 19 Inch Network Cabinet Mount Type









    ODF fiber optic splice tray

    Sliding Fiber Optic Patch Panel is suitable for the protective connection of loose tube optical cables or bundled
    pigtails and jumpers, branch optical cables and jumpers, steel tube type PLC splitters and jumpers, jumpers and jumpers. It is designed with 1U,2U, 3U, and 4U heights, which are suitable for 48, 72, and 96-core distribution respectively. Chassis with 19 or 21inch mounting ears, installed in a cabinet or rack.

    Features

    1) It is made of high-quality cold roll steel&the surface is sprayed with electrostatic powder.
    2) The front door has a hinge, a flip-type structure with elastic door buckle locking method.
    3) Metal pull-out tray with slide rail, stainless steel limit buckle on the side and limit belt on the back to ensure high
    reliability.
    4) The fiber splice stray is made of high-quality plastic, including the fiber splicing module, fiber arrangement module, and
    adapter panel, which can be disassembled and interchanged.
    5) The splice tray is installed on a stepped bracket, which can be superimposed according to the number of U. There are supporting members on the side of the tray, which can be flipped, and the splice is convenient.
    6) There are horn-shaped fiber outlet ears on both sides of the box, which can well protect fiber cables and pigtails.
    7) Pull-out chassis is suitable for standard 19 or 21 inch cabinet or rack installation;.

    ModelCapacityHeightDimension(mm)Weight(Kg)
    FKPPA-020241U435x317.3x45.54.2
