    Double Wall RAL7035 SECC Outdoor Wall Enclosure

    Ask Lasest Price
    Brand Name : ESTEL
    Model Number : ET606090
    Certification : ISO9001, CE,
    Price : Negotiation
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 3000 pcs/month
    Delivery Time : 3-4 weeks
    • Product Details
    • Company Profile

    Double Wall RAL7035 SECC Outdoor Wall Enclosure


    Double Wall Thermal Outdoor Wall Enclosure With Air Conditioner IP55 Weatherproof Floor Mount Telecom Cabinet Outdoor


    1. Introduction


    MaterialSECC, SGCC, galvanized steel, Aluminum, Steel, Stainless steel, Brass, Copper, Bronze, etc.
    ManufacturingFull series of Amada equipment
    Producing processLaser cutting, CNC punching, bending, deburring, grinding, powder coating, assembly and package
    Surface Treatmentpowder coating, painting, galvanizing, anodising, chrome plating, brushing, polishing, silk-screen, printing, sandblasting
    Service TypeOEM / ODM
    CertificateISO9001:2008
    Quality ControlComputer quality control system
    ApplicationIndustry, Mining, Marine, Public Utilities,Automatic machine, Medical device, Automobile, Electric appliance etc

    2. Application


    • It is designed for customer actual application environment and equipment working conditions.
    • It is mainly used on occasions of telecommunication and other wide range application.
    • It provides an ideal,reliable and economical working platform for telecom broadband access networkand other kind of networks.

    3. Features


    (1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

    (2) Cabinet cooling: air conditioner. (Other cooling option: heat exchanger or fan).

    (3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.

    (4) Coating: outdoor anti-corrosion powder coating

    (5) ingress protection: IP55


    4. Technical Parameters


    ItemTypeTechnical Parameter
    StructureDimensionExternal Dimension: W×D×H 600×600×900mm (Including base height)
    Layout1 compartment
    Equipment Installation Method3 trays
    DoorWith one front door, and anti-theft lock for outdoor cabinet.
    Material

    Galvanized steel, double wall, outer wall is 1.2mm, inner wall is

    1.0mm, between two wall there is 20mm insulation.

    Ingress ProtectionIP55
    Temperature ControlCoolingAir conditioner
    TemperatureTemperatureWorking Temperature: -40°C ~ +75°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
    HumidityRelative Humidity5% ~ 100%
    PressureAir Pressure62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
    Radiation IntensitySolar Radiation Intensity1120 ×(1±5%)W/m2

    5. Accessories List


    No.ItemQuantityUnitSpecs
    1Outdoor Cabinet1PC

    (1) (1) External Dimension:

    (2) W×D×H 600×600×900mm(Including base height) (2) One compartment ,including 3 trays for placing equipment

    (3) With one front door, and anti-theft lock for outdoor cabinet.

    (4) Material: galvanized steel, double wall ,outer wall is 1.2mm, inner wall is 1.0mm, between two wall there is 20mm insulation.

    (5) Including cable entry gland

    (6) IP grade : IP55

    (7) Installation method: floor mount and wall mount, including installation accessories

    2Air Conditioner1PC

    Cooling capacity: 500W

    Power Supply: AC220V 50Hz

    3Package1PCWooden Case with pallet

    6. Cabinet Dimension


    External Dimension: W×D×H 600×600×900mm

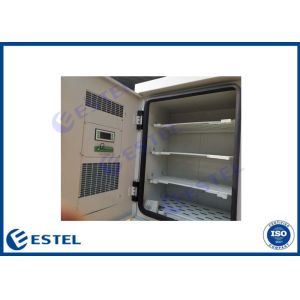

    7. Cabinet Picture



    8. Package


    Using wooden case, free fumigation plywood suitable for export.
