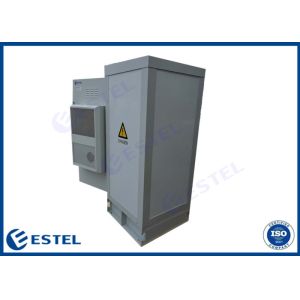

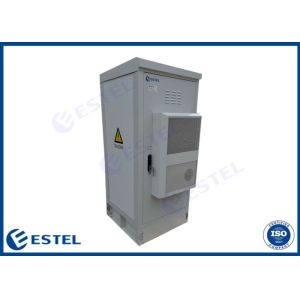

    Sandwich Stucture 32U 19inch Outdoor Electronics Enclosure

    Ask Lasest Price
    Brand Name : ESTEL
    Model Number : ET7575175-EQ
    Certification : ISO9001, CE, RoHs
    Price : Negotiation
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 5000 pcs/month
    Delivery Time : 3-4 weeks
    • Product Details
    • Company Profile

    Sandwich Stucture 32U 19inch Outdoor Electronics Enclosure


    IP55 Sandwich Stucture Panel 32U 19 Inch Outdoor Telecom Enclosure Air Conditioner Cooling


    1. Specifications


    (1) Technical Parameters


    ItemTypeTechnical Parameter
    StructureDimension

    External Dimension H×W×D 1750×750×750mm;

    Internal Dimension H×W×D 1450×650×650mm.

    (19”, 32U)

    Layout1 compartment
    Equipment Installation Method19” rack
    DoorWith one front door, and special anti-theft three point lock for outdoor cabinet (support padlock)
    MaterialSandwich structure panel, galvanized steel, double wall, there is heat insulation between two walls.
    Ingress ProtectionIP55
    Temperature ControlCoolingAC220V air conditioner and AC220V fans
    LightingLED lampAC220V LED lamps
    TemperatureTemperatureWorking Temperature: -40°C ~ +75°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
    HumidityRelative Humidity5% ~ 100%
    PressureAir Pressure62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
    Radiation IntensitySolar Radiation Intensity1120 ×(1±5%)W/m2

    (2) Accessories List


    No.ItemQuantityUnitSpecs
    1Outdoor Telecom Cabinet1Set

    (1) External Dimension H×W×D 1750×750×750mm;

    Internal Dimension H×W×D

    1450×650×650mm.

    (2) One compartment,including 32U 19” equipment rack.

    (3) With one front door, and special anti-theft three point lock for outdoor cabinet (support padlock)

    (4) Sandwich structure panel, galvanized steel, double wall, there is heat insulation between two walls.

    2Air Conditioner1Set

    Power supply: AC220V, 50HZ

    Cooling capacity: 1500W

    3Fan1SetTwo AC220V fans + one temperature controller
    4Environment Monitoring System1Set

    1× environment monitoring unit,19”, 1U; SNMP communication, AC220V

    1× smoke sensor,

    1× water sensor,

    1× temperature&humidity sensor,

    1× door sensor,

    1× tilt&shock sensor.

    5Power Distribution Unit

    Grade B Lightning Proof

    AC Input: 63A/2P ×1;

    AC Output: 16A/1P×4;

    DC Output: 16A/1P×4.

    Height: 4U

    6LED Lamp Switch1PCUsed for controlling LED lamp on/off
    7LED Lamp1PCAC220V
    8Package1SetWooden Case

    Cabinet Drawing:


    External Dimension H×W×D 1750×750×750mm;

    Internal Dimension H×W×D 1450×650×650mm.



    2. Summary


    The ET7575175-EQ Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, 4G system, access/transmission switching station, emergency communication/transmission, etc

    Waterproof, sunproof, dustproof, suitable for outdoor environment.

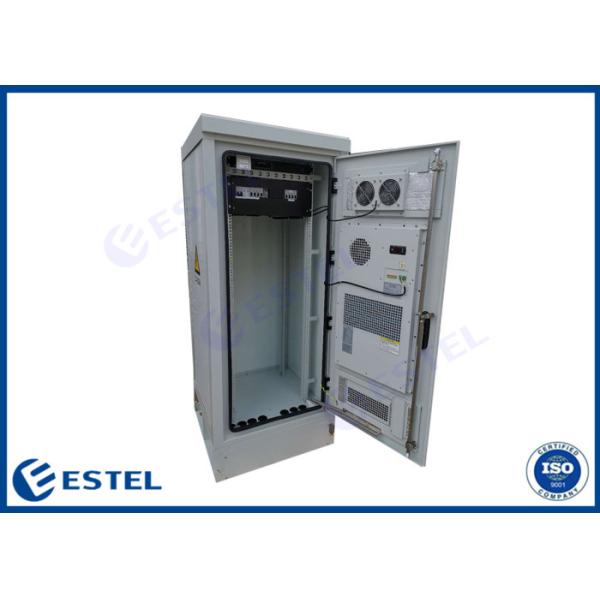

    3. Deails Diagram


    4.Shipping-loading container
