Pure Al 99.5 TAFA 01T Aluminum Electrical Wire Thermal Spray Wire
Small Electric Motor Metal Wire Thermal Spray Wire
Product Description
Pure Aluminum has high electricity conductivity and good heat
dispersing performance, especially for the winding wire for
transferring high frequency signal, such household appliances as
degaussing coil, high frequency transformer, common transformer and
small electric motor etc.
Equivalent to: TAFA 01T, Sulzer Metco Aluminum
Surface Preparation
Surface should be clean, white metal, with no oxides (rust), dirt,
grease, or oil on the surface to be coated. Note: It is best not to
handle surfaces after cleaning. Recommended method of preparation
is, to grit blast with 24 mesh aluminum oxide, rough grind, or
rough machine in a lathe.
Chemical Composition(wt%)
| Al | Si | Mn | Fe | Cu | Ti | Zn |
| >99.5 | ≤0.3 | ≤0.05 | ≤0.4 | ≤0.05 | ≤0.05 | ≤0.07 |
Typical Seposit Characteristics
| Typical Hardness | Bond Strength | Deposit Rate | Deposit Efficiency | Wire Coverage |
| HRB 65 | 4300 psi | 6 lbs/hr/100A | 65 % | 0.3 oz / ft2 / mil |

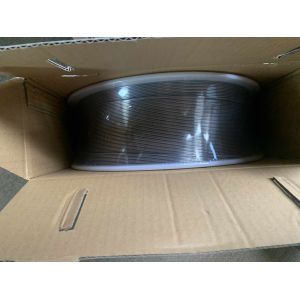

Packing Details
| Diameter | Dimension Tolerance | Packing | Wire Weight |
| 1/16"(1.6mm) | +0/-0.05 | D 300 Spool | 15kgs(33 lbs)/spool |
| 2.0mm | +0/-0.05 | D 300 Spool | 15kgs(33 lbs)/spool |
| 1/8"(3.17mm) | +0/-0.05 | Coil Form | 20-400kgs/coil |
Other sizes can be produced by customers’ requirement.
Applications
• Decorative Purposes
• Electrical Conductivity
• Aluminum Casting Repair
• High Temperature Corrosion
• Aluminum Pattern Restoration
Type We Could Offer
Thermal spray wire-Nickel based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-NiAl95/5 | 75B | 885 | 8400 | 1.6/2.0/3.17mm |
| WL-NiAl80/20 | 79B | 884 | 405 | 2.0/3.17mm |
| WL-NiCr80/20 | 06C | 821 | 8450 | 1.6/2.0/3.17mm |
| WL-Monel400 | 70T | 877 | Monel | 1.6/2.0/3.17mm |
| WL-NiCrTi | 45CT | 889 | 8500 | 1.6/2.0/3.17mm |
| WL-Inconel718 | 78T | 818 | 8718 | 1.6/2.0/3.17mm |
| WL-Inconel625 | 71T | 860 | 8625 | 1.6/2.0/3.17mm |
| WL-Alloy-C276 | 77T | 876 | 8276 | 1.6/2.0/3.17mm |
| WL-NiCrAl(P) | 73MXC | 886 | 8443 | 1.6/2.0mm |
| WL-NiCrAlY(P) | 76MXC | 887 | 884 | 1.6/2.0mm |
| WL-NiMoAl(P) | 74MXC | 888 | 8447 | 1.6/2.0mm |
Thermal spray wire-Iron based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-SS420 | 60T | 720 | Metcoloy 2 | 1.6/2.0/3.17mm |
| WL-SS304/304L | 80T | 710 | Metcoloy 1 | 1.6/2.0/3.17mm |
| WL-SS316/316L | 85T | 730 | Metcoloy 4 | 1.6/2.0/3.17mm |
| WL-FeCrAl | Alcro | 731 | | 1.6/2.0mm |
| WL-FeCrBSi(P) | 95MXC | 273 | | 1.6/2.0mm |
| WL-FeCrNiB(P) | 96MXC | | | 1.6/2.0mm |
| WL-Tungsten Carbide(P) | 97MXC | 297 | Duocor | 1.6/2.0mm |
| WL-LCr Carbide(P) | 98MXC | 223 | | 1.6/2.0mm |
| WL-FeAl(P) | 35MXC | 50 | | 1.6/2.0mm |
| WL-HCr Carbide(P) | | 226 | Sm8222 | 1.6/2.0mm |
Thermal spray wire-Copper based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Copper | | | | 1.6/2.0/3.17mm |
| WL-CuSn1 | 05T | | | 1.6/2.0/3.17mm |
| WL-CuAl8 | | | Sprabronze AB | 1.6/2.0/3.17mm |
| WL-CuAl10 | 10T | 590 | Sprabronze AA | 1.6/2.0/3.17mm |
Thermal spray wire-Zinc & Aluminium based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Al | 01T | 699 | Aluminum | 1.6/2.0/3.17mm |
| WL-Pure Al Grade 1100 | | | | 1.6/2.0/3.17mm |
| WL-Pure Zn | 02Z | 540 | Zinc | 1.6/2.0/3.17mm |
| WL-AlMg5 | | | Metco AlMg | 1.6/2.0/3.17mm |
| WL-ZnAl85/15 | 02A | | Zn/Al | 1.6/2.0/3.17mm |
Thermal spray wire-Other based alloy
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Molybdenum wire | 13T | 899 | Sprabond | 1.6/2.0/3.17mm |
| WL-Babbitt wire | 04T | 542 | Sprababbitt | 1.6/2.0/3.17mm |
| WL-Tin wire | 02W | 549 | Metco Tin | 1.6/2.0mm |
| WL-Ti wire | 14T | | | 1.6/2.0mm |
